Switch Panel Wiring Harnesses Replacement

TM 9-2320-363-34-1 · Chapter 4 — Electrical System Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                              Equipment Condition:
Shop Equipment, SC 4910-95-CL-A31                         Reference                   Condition Description
Tool Kit, SC 5180-90-CL-N05
                                                          TM 9-2320-363-20            Batteries Disconnected
References:

TM 9-2320-363-20

                                                   NOTE
       l     Wiring harness and leads are       secured    in   place   by   clips,   wire   ties,   cushion
            clamps, and screw terminals.

       l    Only remove hardware securing harness or lead to be removed.

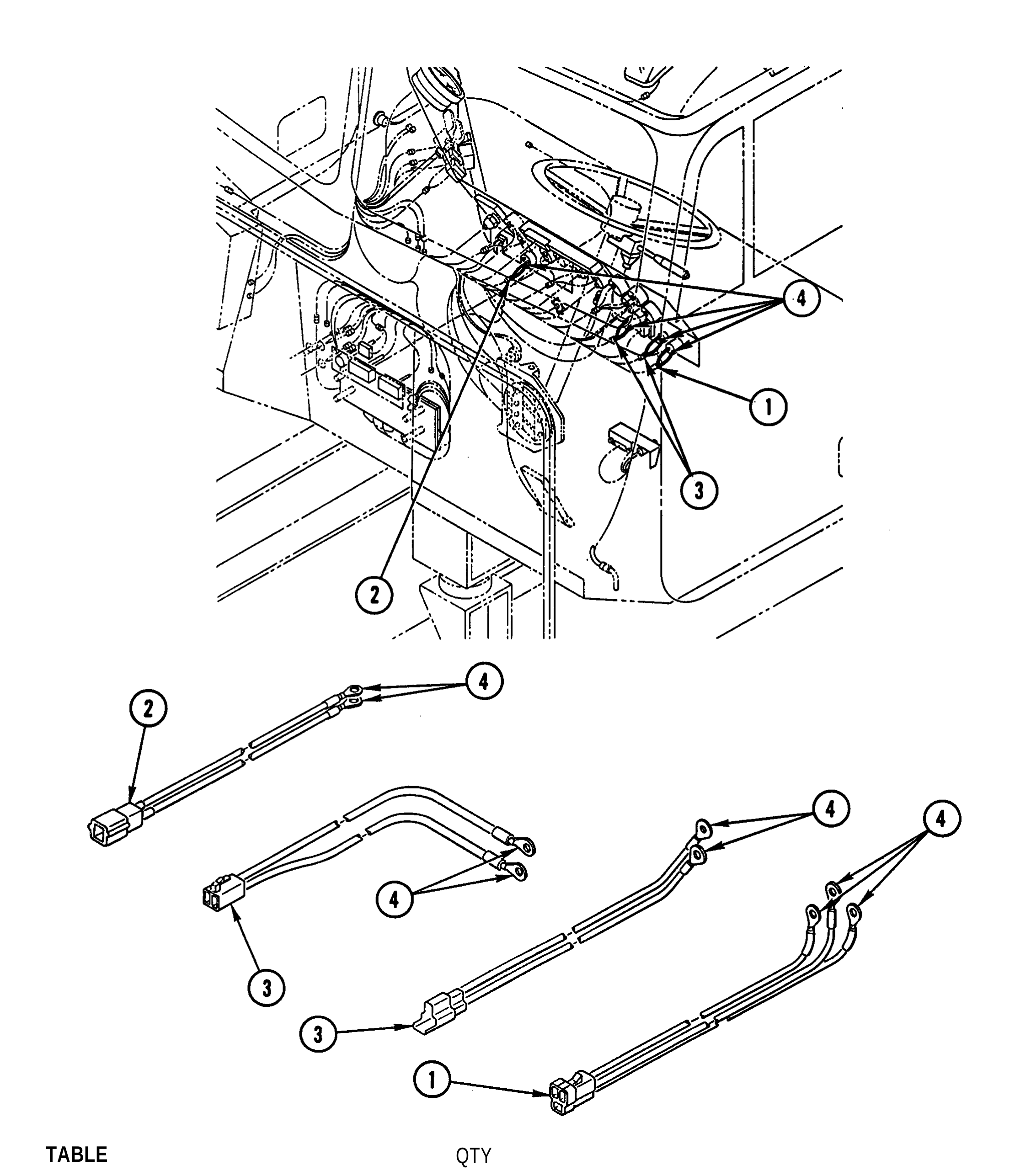

       DISCONNECT AND REMOVE SWITCH PANEL WIRING HARNESSES USING ILLUSTRATION AND
       TABLE AS A GUIDE.

       Use general cleaning methods to clean all parts (page 2-30).

       Inspect all parts for wear or damage.

                                                   NOTE
        l   Wiring harness and leads are secured in place by clips, wire ties, cushion
            clamps, and screw terminals.

        l   Make sure harness is secure and all hardware is tight.

       INSTALL AND CONNECT SWITCH PANEL WIRING HARNESSES USING ILLUSTRATION AND
       TABLE AS A GUIDE.

                                                   NOTE
                                    Follow-on Maintenance:
        Connect batteries (TM 9-2320-363-20).

TABLE QTY 1 3-Pin Female Connector 2 2-Pin Female Connector 3 2-Pin Male Connector 4 Ring Terminal
