Cab Anti-Lock Brake System (ABS) Wiring Harness
TM 9-2320-363-34-1 · Chapter 4 — Electrical System Maintenance
REPLACEMENT This task covers: a. Removal b. Cleaning c. Inspection d. Installation
Applicable Configuration: References:
M915A2 TM 9-2320-363-20
Tools and Special Equipment: Equipment Condition:
Shop Equipment, SC 4910-95-CL-A31 Reference Condition Description
Tool Kit, SC 5180-90-CL-N05
TM 9-2320-363-20 Batteries Disconnected
NOTE
Wiring harness and leads are secured in place by wire ties and screw
terminals.
Only remove hardware securing harness or lead to be removed.
REMOVE CAB ANTI-LOCK BRAKE SYSTEM (ABS) WIRING HARNESS USING ILLUSTRATION AND
LEGEND AS A GUIDE.
Use general cleaning methods to clean all parts (page 2-30).
Inspect all parts for wear or damage.
NOTE
Wiring harness and leads are secured in place by wire ties and screw
terminals.
Make sure harness is secure and all hardware is tight.
INSTALL CAB ANTI-LOCK BRAKE SYSTEM (ABS) WIRING HARNESS USING ILLUSTRATION AND
LEGEND AS A GUIDE.
NOTE
Follow-on Maintenance:
Connect batteries (TM 9-2320-363-20).
LEGEND
1 2-Pin Connector 2 2-Pin Receptacle 3 3-Pin Connector 4 4-Pin Connector 5 6-Pin Connector 6 6-Pin Receptacle 7 Ring Terminal (2)
F R O N T A N T I - L O C K B R A K E S Y S T E M ( A B S ) W I R I N G H A R N E S S REPLACEMENT This task covers: a. Removal b. Cleaning c. Inspection d. Installation
References:
TM 9-2320-363-20 Tools and Special Equipment: Equipment Condition: Tool Kit, SC 5180-90-CL-N05 Reference Condition Description
TM 9-2320-363-20 Batteries Disconnected
l Wiring harness and leads are secured in place by clips, wire ties, cushion clamps.
l Only remove hardware securing harness or lead to be removed.
REMOVE FRONT ANTI-LOCK BRAKE SYSTEM (ABS) WIRING HARNESS USING ILLUSTRATION AND LEGEND AS A GUIDE.
Use general cleaning methods to clean all parts (page 2-30).
Inspect all parts for wear or damage.
l Make sure harness is secure and all hardware is tight.
INSTALL FRONT ANTI-LOCK BRAKE SYSTEM (ABS) WIRING HARNESS USING ILLUSTRATION AND LEGEND AS A GUIDE.
Connect batteries (TM 9-2320-363-20).
LEGEND
1 2-Pin Connector (4) 2 2-Pin Receptacle 3 3-Pin Connector 4 3-Pin Receptacle (3)
F R O N T A N T I - L O C K B R A K E S Y S T E M ( A B S ) W I R I N G H A R N E S S REPLACEMENT (CONT)

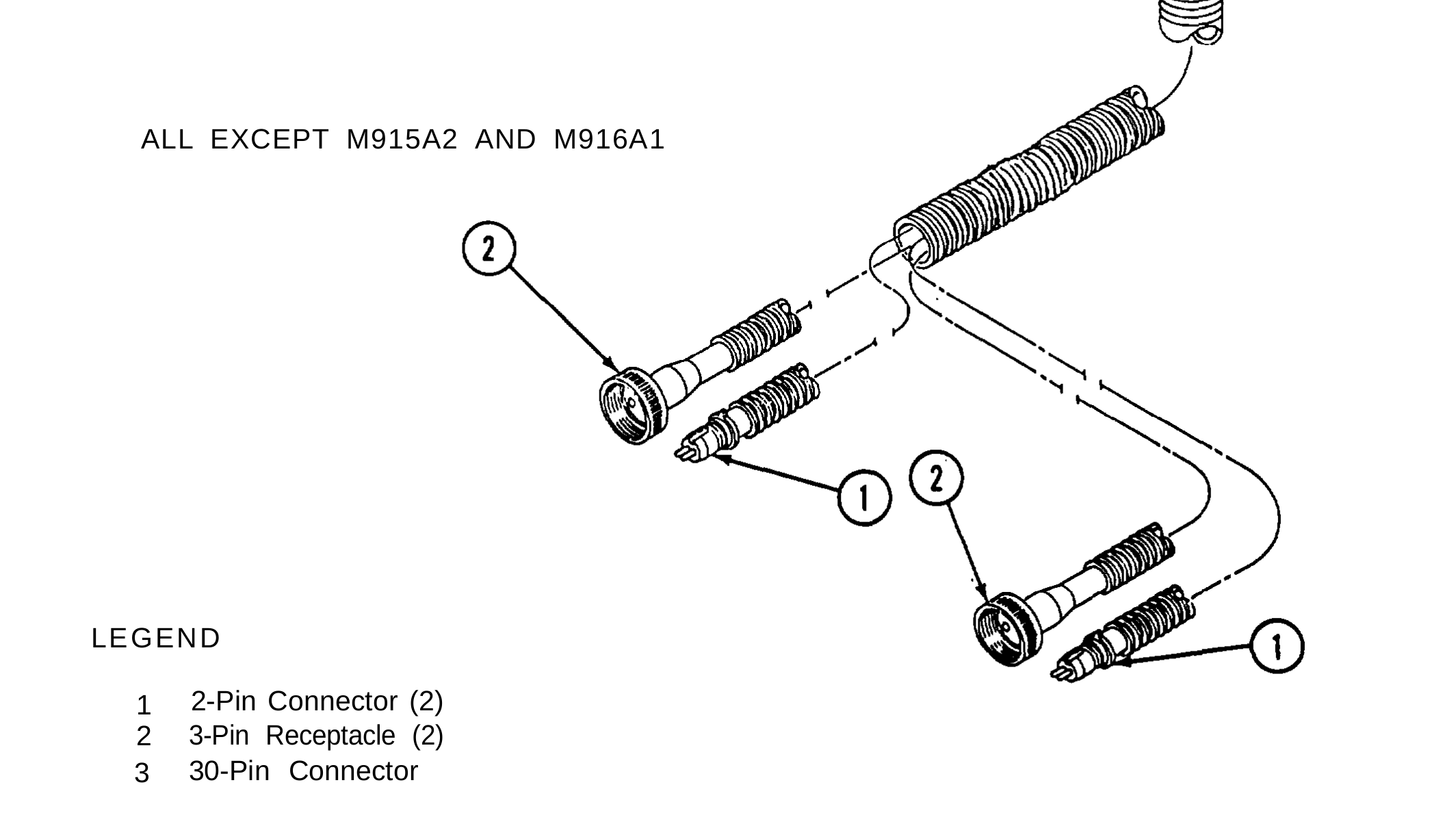

ALL EXCEPT M915A2 AND M916A1
LEGEND
1 2-Pin Connector (2) 2 3-Pin Receptacle (2) 3 30-Pin Connector
THIS PAGE INTENTIONALLY LEFT BLANK
R E A R A N T I - L O C K B R A K E S Y S T E M ( A B S ) W I R I N G H A R N E S S REPLACEMENT This task covers: a. Removal b. Cleaning c. Inspection d. Installation
References:
TM 9-2320-363-20 Tools and Special Equipment: Equipment Condition: Tool Kit, SC 5180-90-CL-N05 Reference Condition Description
TM 9-2320-363-20 Batteries Disconnected
l Wiring harness and leads are secured in place by clips, wire ties, and cushion clamps.
l Only remove hardware securing harness or lead to be removed.
REMOVE REAR ANTI-LOCK BRAKE SYSTEM (ABS) WIRING HARNESS USING ILLUSTRATION AND LEGEND AS A GUIDE.
Use general cleaning methods to clean all parts (page 2-30).
Inspect all parts for wear or damage.
l Make sure harness is secure and all hardware is tight.
INSTALL REAR ANTI-LOCK BRAKE SYSTEM (ABS) WIRING HARNESS USING ILLUSTRATION AND LEGEND AS A GUIDE.
Connect batteries (TM 9-2320-363-20).
LEGEND
1 2-Pin Connector (3) 2 2-Pin Receptacle 3 3-Pin Connector 4 3-Pin Receptacle (3)
R E A R A N T I - L O C K B R A K E S Y S T E M ( A B S ) W I R I N G H A R N E S S REPLACEMENT (CONT)
ALL EXCEPT M915A2 AND M916A1 LEGEND
1 2-Pin Connector (2) 2 2-Pin Receptacle (2) 3 30-Pin Connector
