Front Steering Arm Replacement
TM 9-2320-363-34-1 · Chapter 5 — Front Axle Maintenance
This task covers: a. Removal b. Cleaning c. Inspection d. Installation
Applicable Conflguratlon: References:
M915A2 TM 9-2320-363-20
Tools and Special Equipment: Equipment Condition:
Shop Equipment, SC 4910-95-CL-A31 Reference Condition Description
Tool Kit, SC 5180-90-CL-N05
TM 9-2320-363-20 Drag Link Removed
Materials/Parts:
TM 9-2320-363-20 Front Brake Spider and
Pin, Cotter Brake Chamber Bracket
Removed

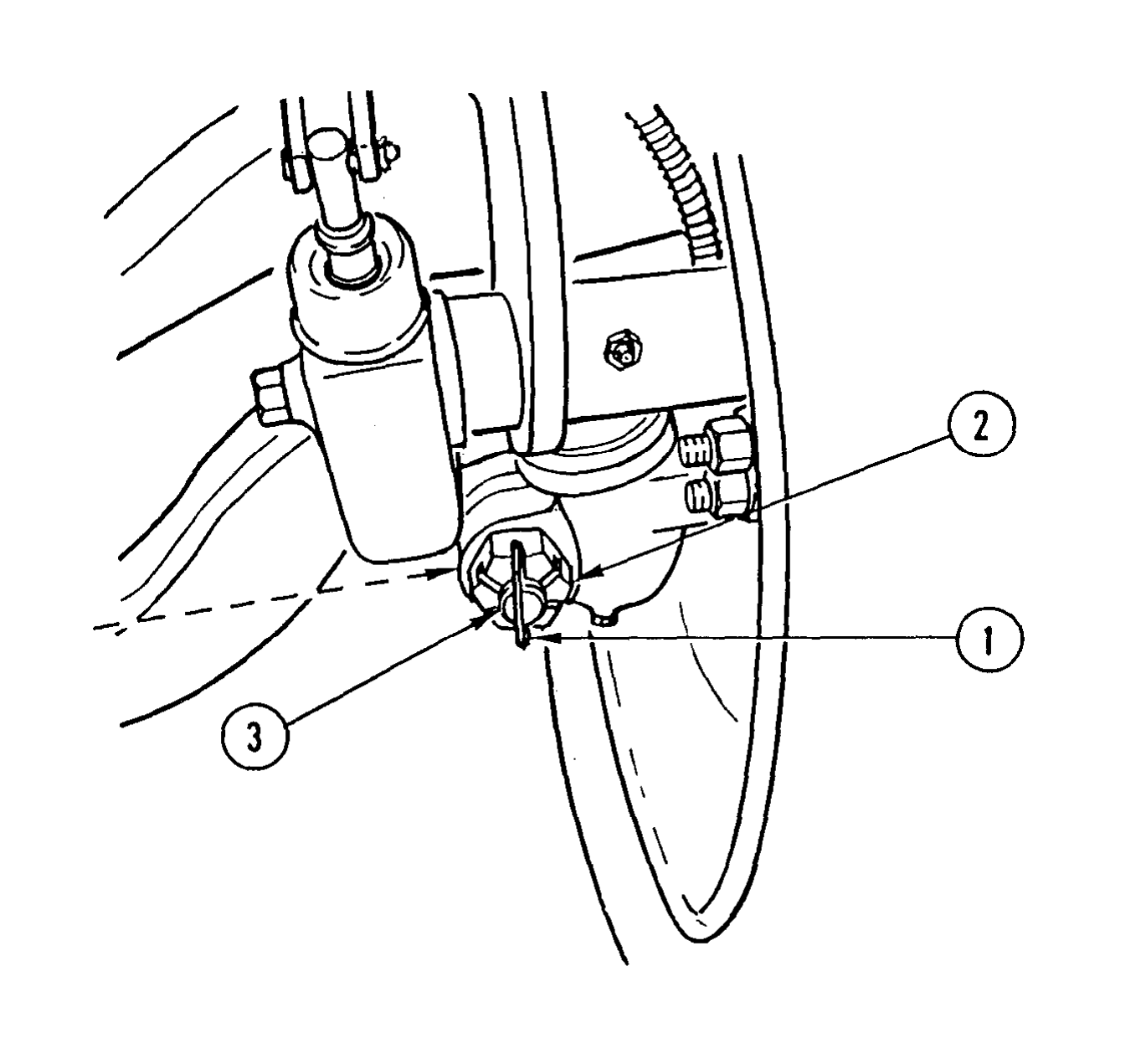

REMOVE COTTER PIN (1), CASTELLATED NUT (2), STEERING ARM (3), AND WOODRUFF KEY
(4). DISCARD COTTER PIN.
TM page 5-57
Use general cleaning methods to clean all parts (page 2-30).
Inspect all parts for wear or damage.
1. INSTALL WOODRUFF KEY (4), STEERING ARM (3), AND CASTELLATED NUT (2). TIGHTEN CASTELLATED NUT TO 775-1,050 LB-FT (1051-1424 N.m).
CAUTION Castellated nut may be tightened to 1,450 Ib-ft (1966 N.m) for purpose of installing cotter pin. Overtightening may damage steering arm.
2. INSTALL NEW COTTER PIN (1).
NOTE Follow-on Maintenance:
Install drag link (TM 9-2320-363-20). Install front brake spider and brake chamber bracket (TM 9-2320-363-20).
TM page 5-58
