2-20. Timing Gear Cover Repair

TM 9-2815-237-34 · Chapter 2 — Engine Maintenance

This task covers:

a. Cleaning b. Inspection

INITIAL SETUP

    Tools                                                Equipment Condition
       General mechanic’s tool kit:                        Engine disassembled into subassemblies
        automotive (Appendix E, Item 1)                    (para. 2-15).
    Manual References
       TM 9-2815-237-34P

    a. Cleaning

Clean all components in accordance with para. 2-9.
    b. Inspection

                                                   NOTE
                           For general inspection instructions, refer to para. 2-10.

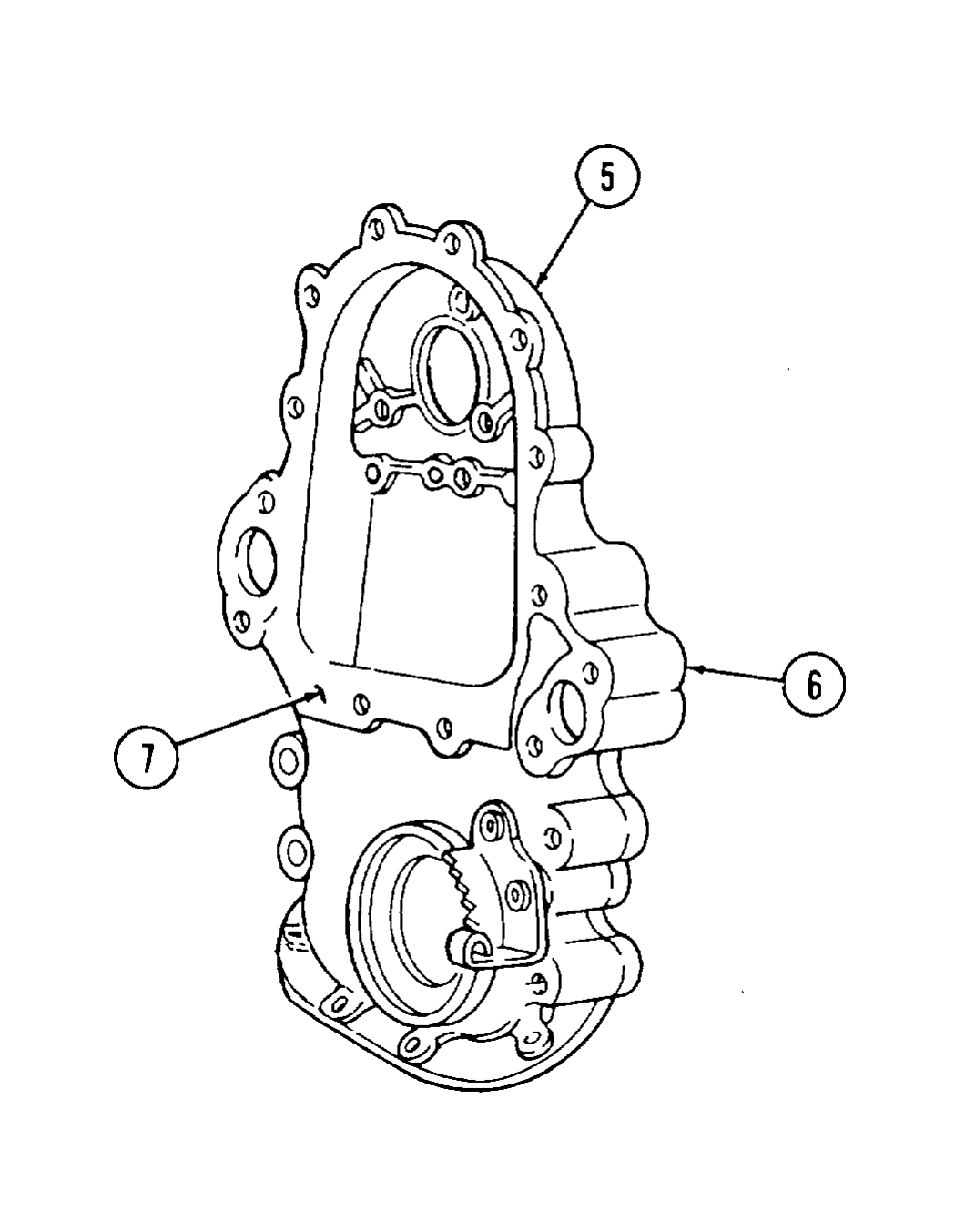

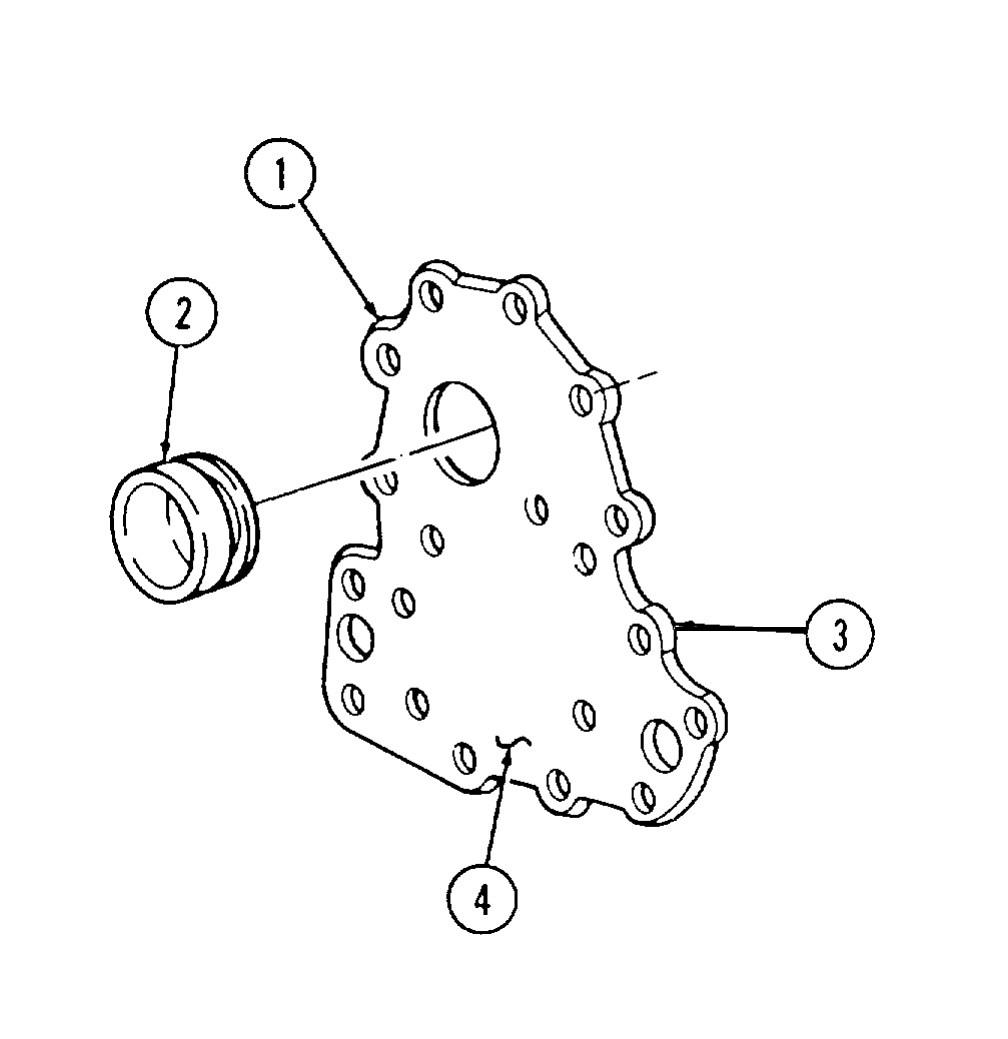

1. Inspect sealing surfaces (7) and (6) on timing gear cover (5) and sealing surfaces (3) and (4) on water
     pump adapter plate (1) for deep scratches or dents. Replace either if deeply scratched or dented.
2. Inspect timing gear cover (5) and water pump adapter plate (1) for damage. Replace either
     if damaged.
3. Inspect oil filler tube grommet (2) for damage. Replace if damaged.

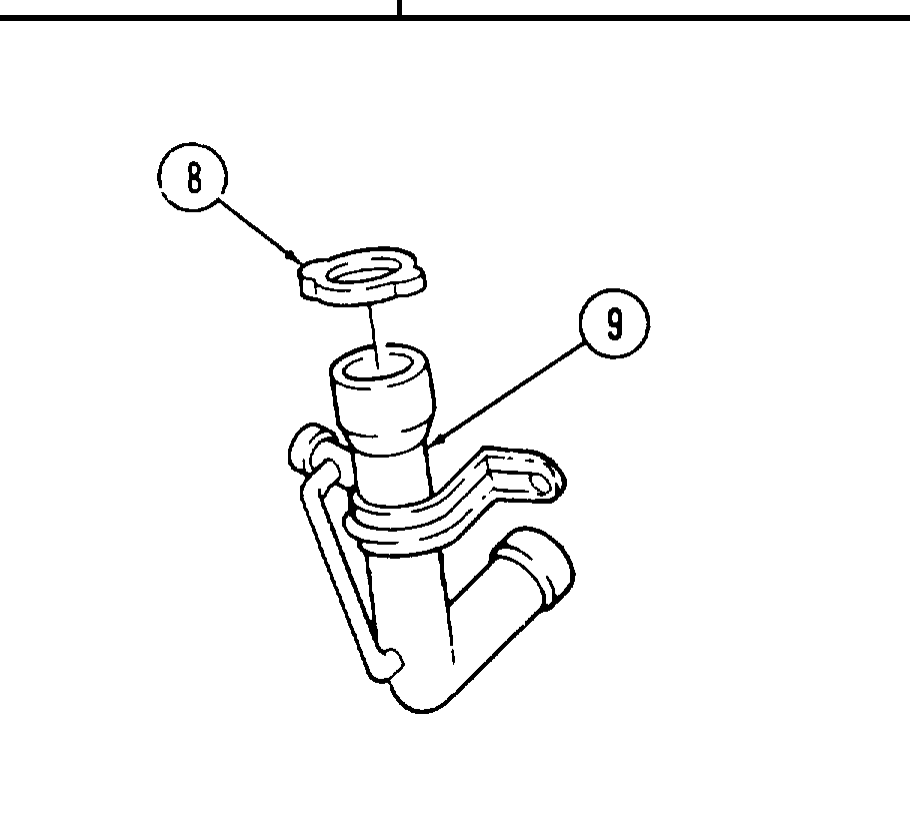

4. Inspect oil filler tube (9) for damage. Replace if damaged.
5. Inspect oil filler tube cap (8) for damage. Replace if damaged.
