Winch Hydraulic Oil Filter Adapter Replacement

TM 9-2320-363-34-1 · Chapter 11 — Winch Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Applicable Configuration:                           Equipment Condition:

M916A1 and M916A2                                   Reference                Condition Description

Tools and Special Equipment:                        TM 9-2320-363-20         Oil Filter Element
                                                                             Removed
Tool Kit, SC 5180-95-CL-N05
                                                    General Safety Instructions:
Materials/Parts:
Compound, Pipe          Appendix B, Item 15
Sealing                                                             WARNING
                                                           Spilled hydraulic fluid is very
Tape, Teflon            Appendix B, Item 60                slippery. Wipe up any spilled
                                                           fluid immediately. Failure to do
References:                                                so could result in serious injury
TM 9-2320-363-20                                           to personnel.

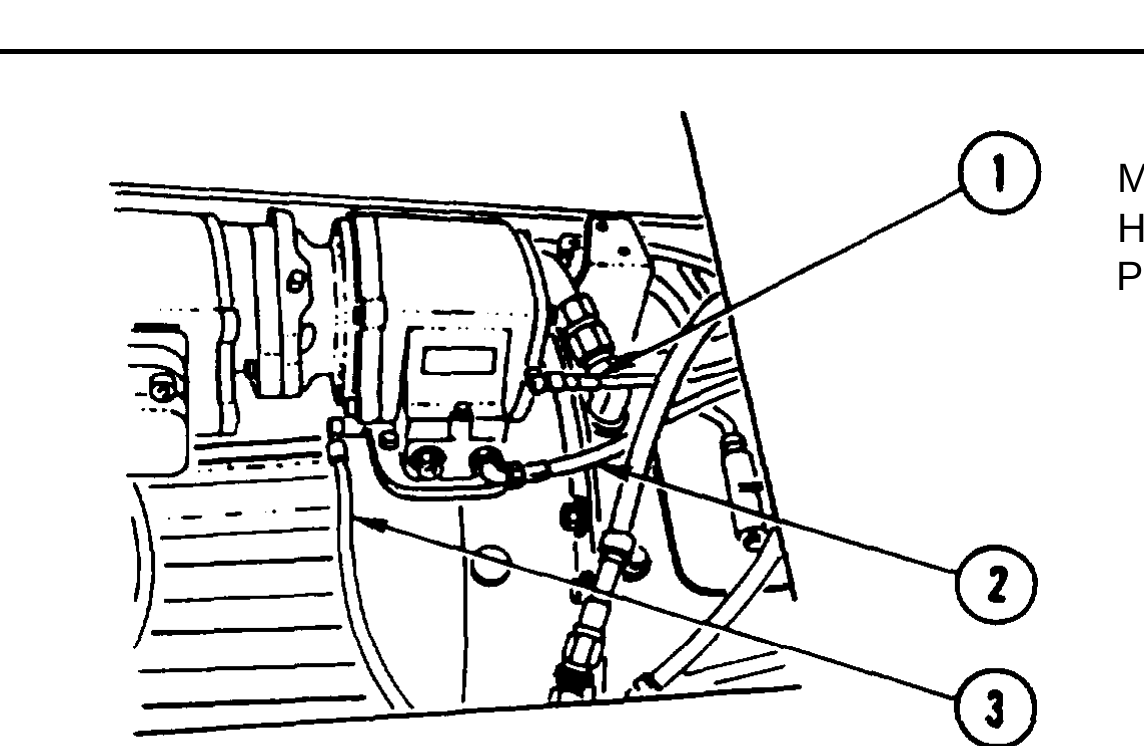

1. LOOSEN TWO HOSE CLAMPS (1) AND DISCONNECT NIPPLE (2).

2. REMOVE HYDRAULIC OIL FILTER ADAPTER (3).

3. REMOVE AOAP VALVE (4).

4. REMOVE ELBOW (5) AND TWO NIPPLES (6).

Use general cleaning methods to clean all parts (page 2-30).

Inspect all parts for wear or damage.

1. COAT THREADS OF TWO NIPPLES (6) WITH PIPE SEALING COMPOUND.

2. INSTALL TWO NIPPLES (6) AND ELBOW (5).

3. COAT THREADS OF AOAP VALVE (4) WITH PIPE SEALING COMPOUND OR TEFLON TAPE.

4. INSTALL AOAP VALVE (4).

Spilled hydraulic fluid is very slippery. Wipe up any spilled fluid immediately. Failure to do so could result in serious injury to personnel.

5. INSTALL HYDRAULIC OIL FILTER ADAPTER (3).

6. CONNECT NIPPLE (2) AND TIGHTEN TWO HOSE CLAMPS (1).

Install oil filter element (TM 9-2320-363-20).
