Turn Signal (Thru-Deck) Wiring Harness Replacement

TM 9-2320-363-34-1 · Chapter 4 — Electrical System Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                            Equipment Condition:
Tool Kit, SC 5180-90-CL-N05                             Reference              Condition Description
References:                                             TM 9-2320-363-20       Batteries Disconnected
TM 9-2320-363-20

                                                   NOTE
         Procedure is the same for both wiring harnesses.
          Wiring harness and leads are secured in place by clips, wire ties, cushion
          clamps, and screw terminals.
          Only remove hardware securing harness or lead to be removed.

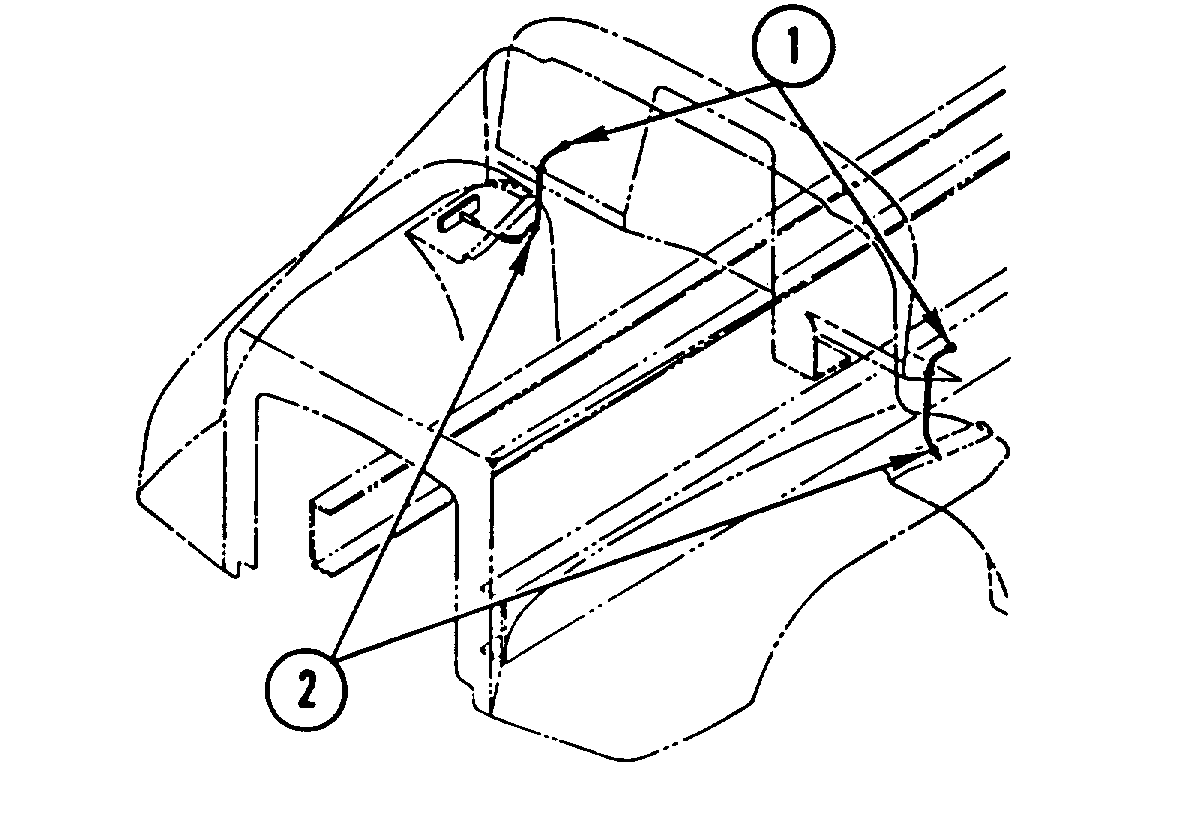

       DISCONNECT AND REMOVE TURN SIGNAL (THRU-DECK) WIRING HARNESS USING
       ILLUSTRATION AND TABLE AS A GUIDE.

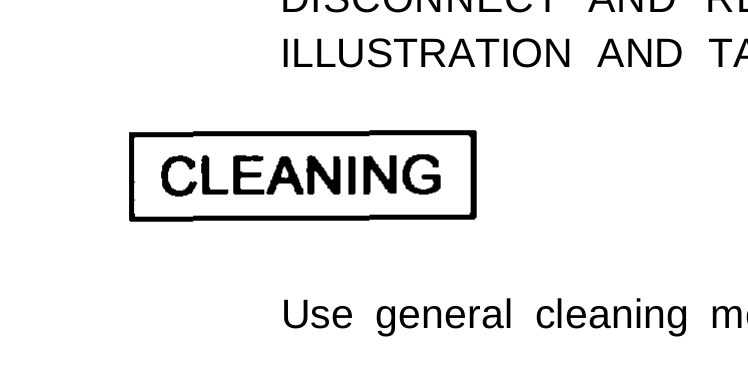

       Use general cleaning methods to clean all parts (page 2-30).

       Inspect all parts for wear or damage.

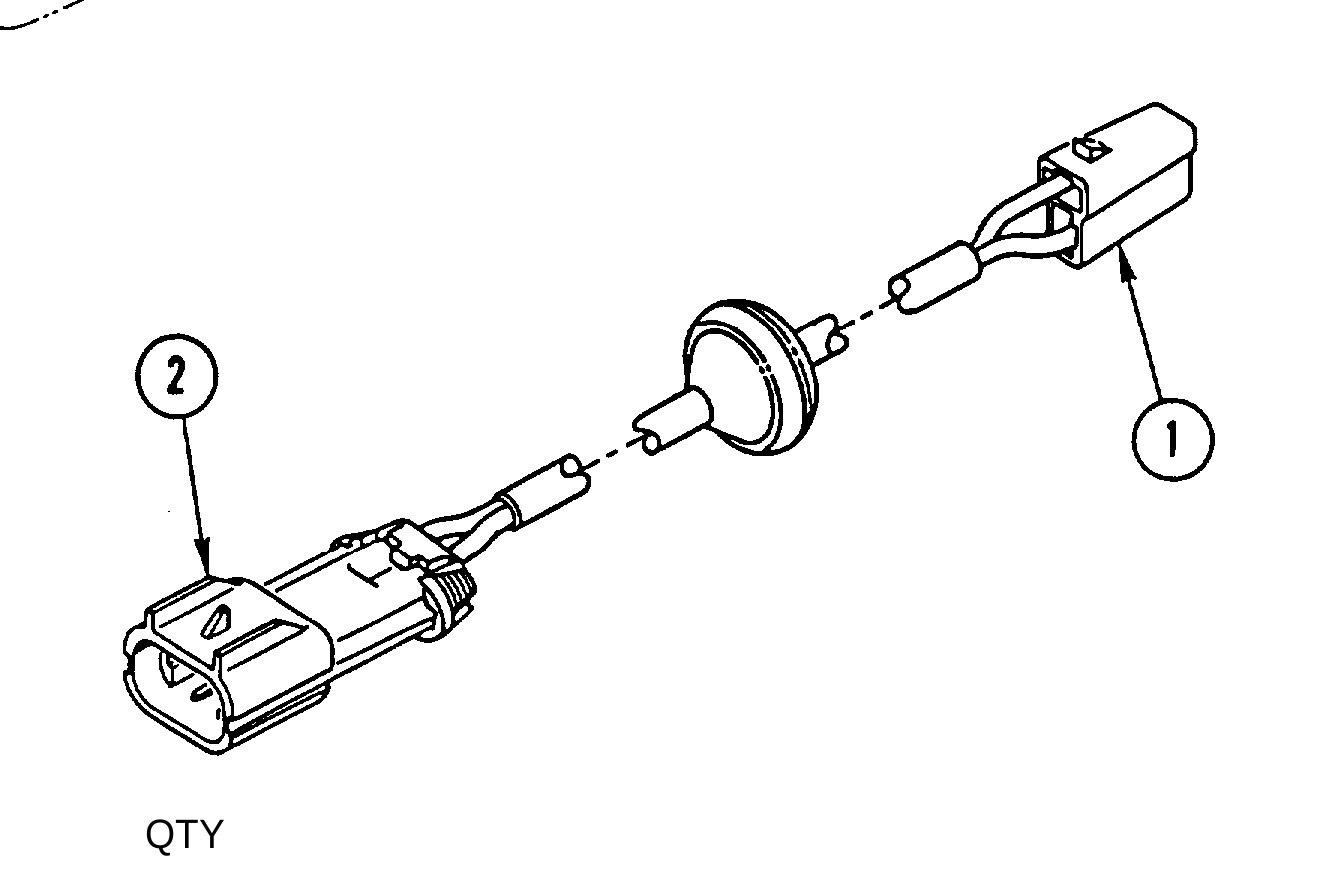

TABLE QTY

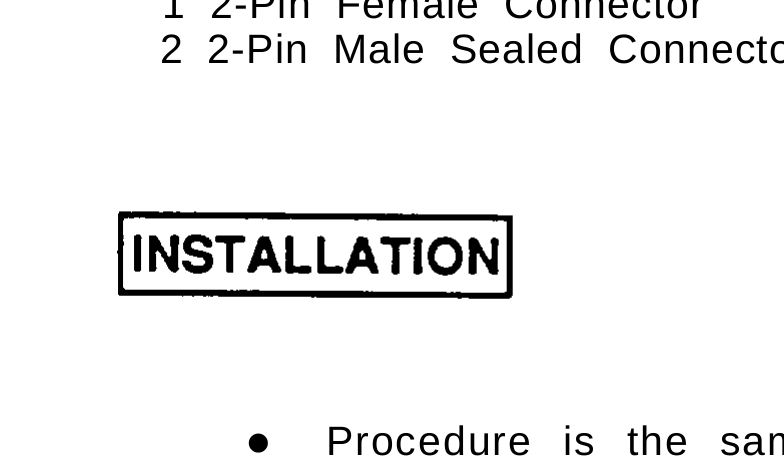

1 2-Pin Female Connector 1 2 2-Pin Male Sealed Connector 1

l Procedure is the same for both wiring harnesses.

l Wiring harness and leads are secured in place by clips, wire ties, cushion clamps, and screw terminals.

l Make sure harness is secure and hardware is tight,

INSTALL AND CONNECT TURN SIGNAL (THRU-DECK) WIRING HARNESS USING ILLUSTRATION AND TABLE AS A GUIDE.

Connect batteries (TM 9-2320-363-20).
