STE/ICE Wiring Harness Replacement

TM 9-2320-363-34-1 · Chapter 4 — Electrical System Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                            Equipment Condition:

Tool Kit, SC 5180-90-CL-N05                             Reference              Condition Description

References:                                             TM 9-2320-363-20       Batteries Disconnected

TM 9-2320-363-20

                                                   NOTE
       l     Wiring harness and leads are secured in place by wire ties, cushion clamps,
            and screw terminals.

       l     Only remove hardware securing harness or lead to be removed.

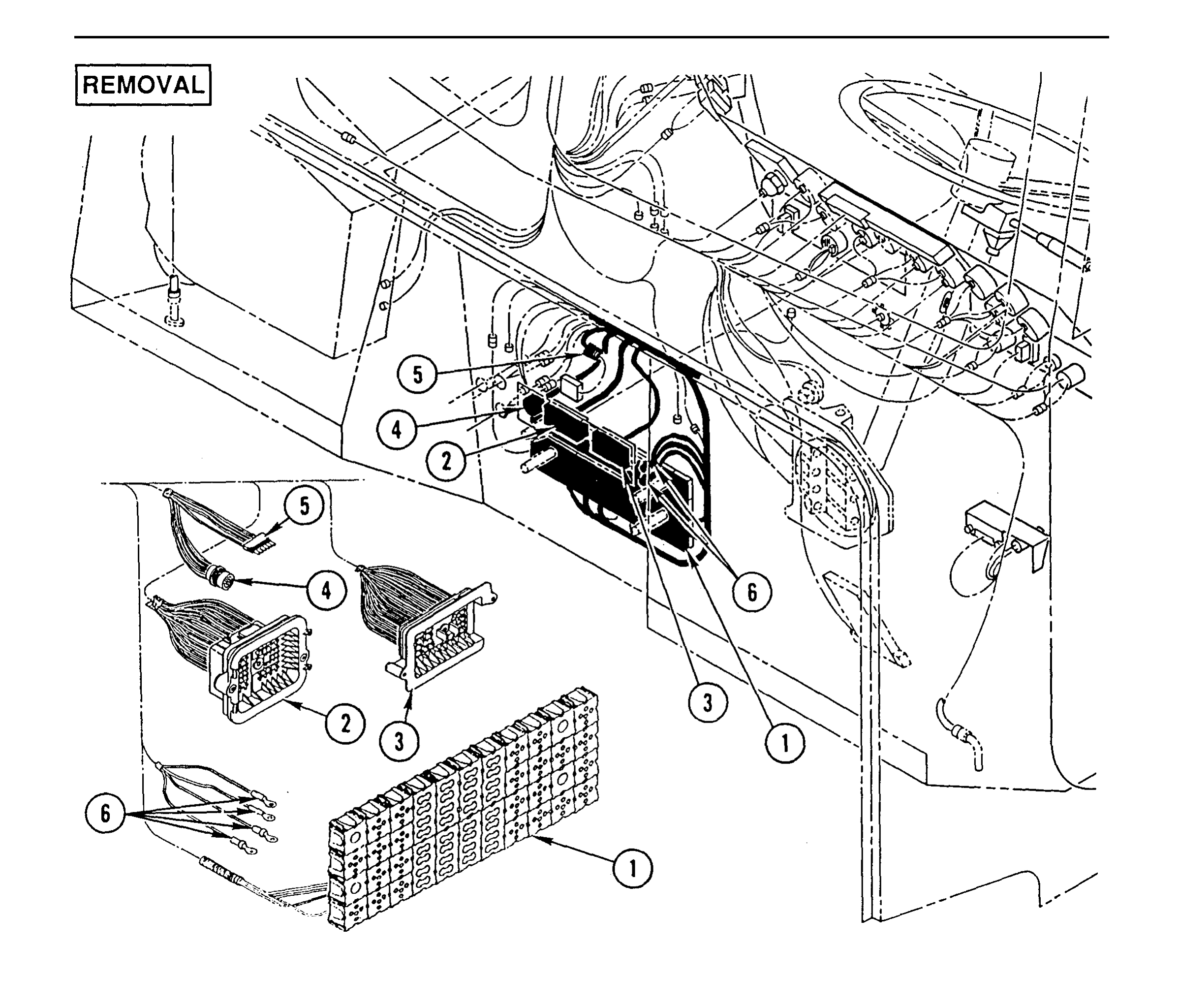

       DISCONNECT AND REMOVE STE-ICE WIRING HARNESS USING ILLUSTRATION AND TABLE AS
       A GUIDE.

       Use general cleaning methods to clean all parts (page 2-30).

       Inspect all parts for wear or damage.

                                                   NOTE
        l    Wiring harness and leads are secured in place by wire ties, cushion clamps,
            and screw terminals.

        l    Make sure harness is secure and all hardware is tight.

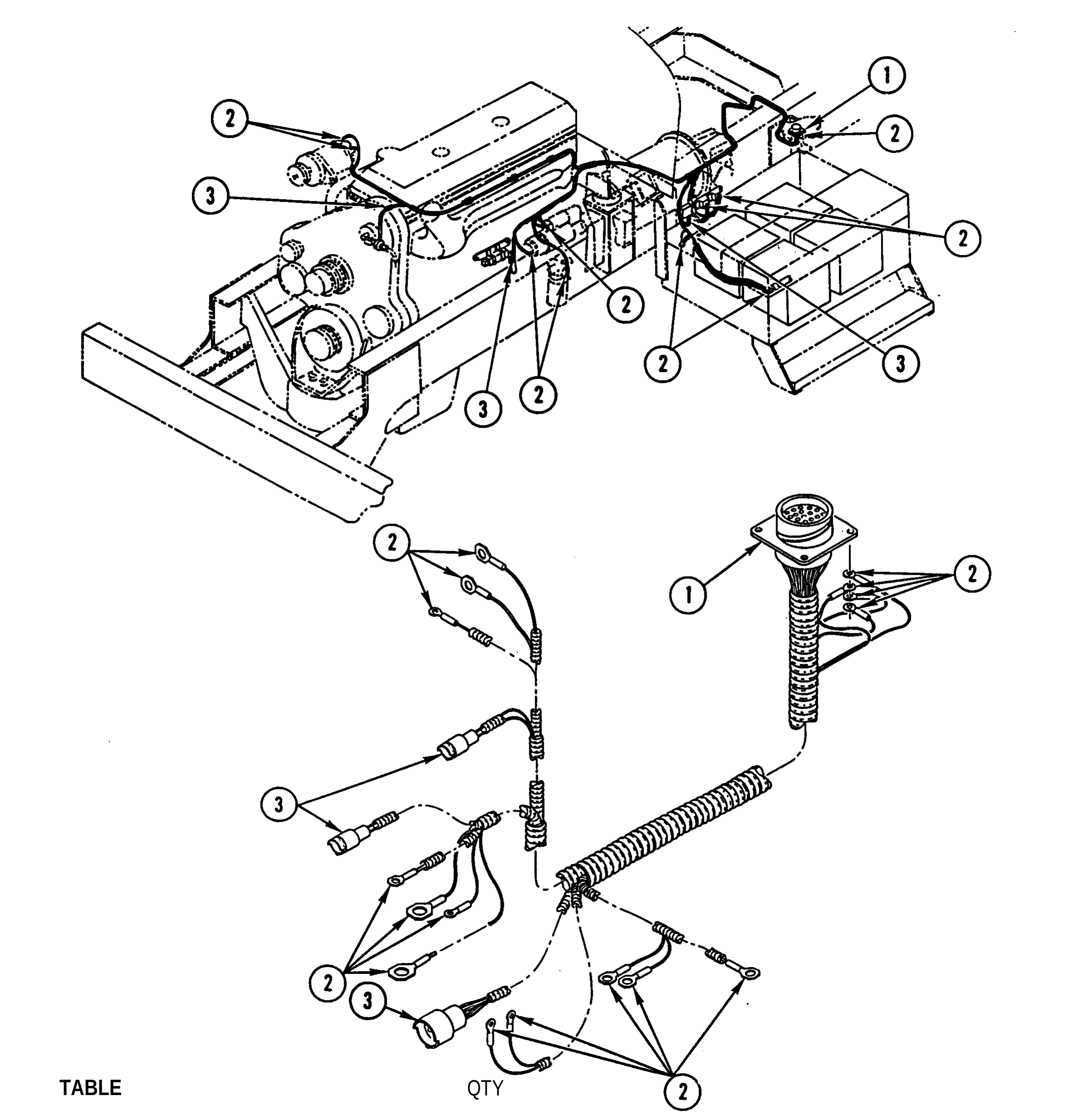

       INSTALL AND CONNECT STE-ICE WIRING HARNESS USING ILLUSTRATION AND TABLE AS A
       GUIDE.

                                                   NOTE
                                    Follow-on Maintenance:
        Connect batteries (TM 9-2320-363-20).

TABLE QTY 1 Receptacle 1 2 Ring Terminal 16 3 2-Pin Connector 3
