Rear Spring Hanger Replacement

TM 9-2320-363-34-1 · Chapter 9 — Suspension Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                         Equipment Condition:

Shop Equipment, SC 4910-95-CL-A31                    Reference              Condition Description
Tool Kit, SC 5180-90-CL-N05
                                                     Page 9-12              Rear Spring and Saddle
                                                                            Assembly Removed

                                                 NOTE
              l     Procedure is the same for both front and rear spring hangers.

              l     Step 1 is for M915A2 only.

1.     REMOVE EIGHT NUTS (1), EIGHT WASHERS (2), EIGHT SCREWS (3), EIGHT WASHERS (4), TWO
       SPACERS (5), SPRING HANGER (6), AND SPACER (7).

PDF page 631

NOTE Step 2 is for all except M915A2.

2. REMOVE EIGHT NUTS (8), EIGHT WASHERS (9), EIGHT SCREWS (10), EIGHT WASHERS (11), TWO SPACERS (12), AND SPRING HANGER (13).

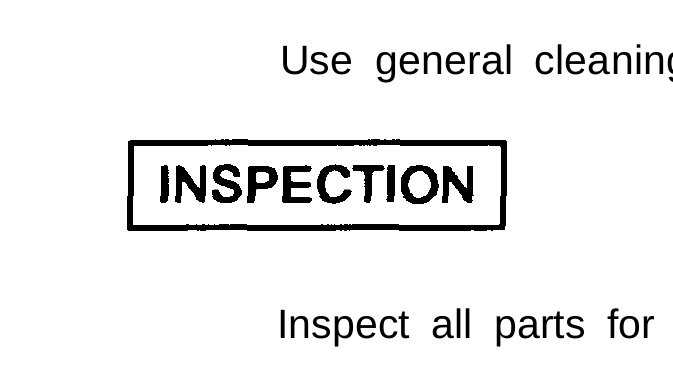

Use general cleaning methods to clean all parts (page 2-30).

Inspect all parts for wear or damage.

Change 1 9-19

TM page 9-20

NOTE l Procedure is the same for both front and rear spring hangers.

l Step 1 is for M915A2 only.

1. INSTALL SPACER (1), SPRING HANGER (2), TWO SPACERS (3), EIGHT WASHERS (4), EIGHT SCREWS (5), EIGHT WASHERS (6), AND EIGHT NUTS (7). TIGHTEN NUTS TO 62-84 LB-FT (84-114 N.m).

TM page Change 1 9-21

NOTE Step 2 is for all except M915A2.

2. INSTALL SPRING HANGER (8), TWO SPACERS (9), EIGHT WASHERS (10), EIGHT SCREWS (11), EIGHT WASHERS (12), AND EIGHT NUTS (13).

NOTE Follow-on Maintenance:

Install rear spring and saddle assembly (page 9-12).
