Overhead Cab Wiring Harness Replacement
TM 9-2320-363-34-1 · Chapter 4 — Electrical System Maintenance

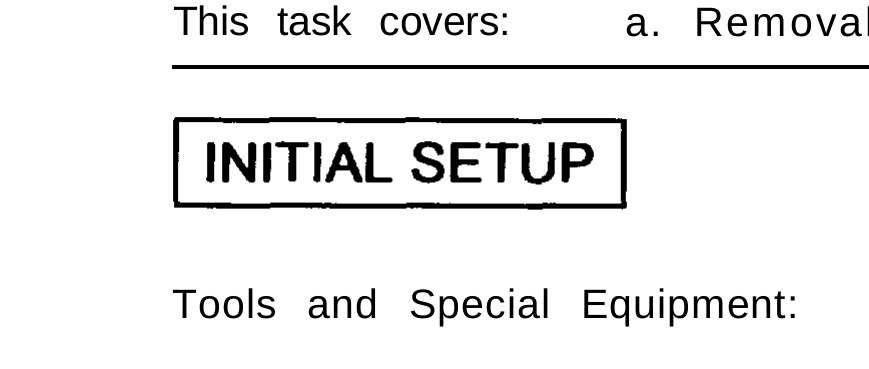

This task covers: a. Removal b. Cleaning c. Inspection d. Installation
Equipment Condition:
Tools and Special Equipment:
Reference Condition Description
Shop Equipment, SC 4910-95-CL-A31
Tool Kit, SC 5180-90-CL-N05
TM 9-2320-363-20 Head Liners Removed
References:
TM 9-2320-363-20 Batteries Disconnected
TM 9-2320-363-20
NOTE
l Wiring harness and leads are secured in place by clips and screw terminals.
l Only remove hardware securing harness or lead to be removed.
l M917A1 and M917A1 w/MCS have no utility lights. Item 4 is not included in M917A1 and
M917A1 w/MCS wiring harness.

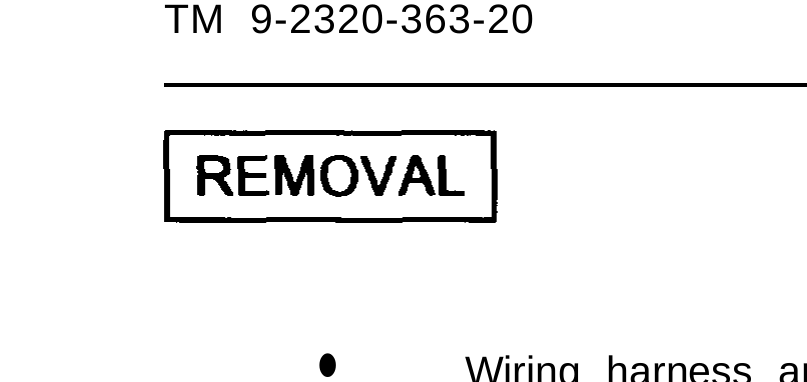

DISCONNECT AND REMOVE OVERHEAD CAB WIRING HARNESS USING ILLUSTRATION AND
TABLE AS A GUIDE.
Use general cleaning methods to clean all parts (page 2-30).
Inspect all parts for wear or damage.
NOTE
l Wiring harness and leads are secured in place by clips and screw terminals.
l Make sure harness is secure and all hardware is tight.
l M917A1 and M917A1 w/MCS have no utility lights. Item 4 is not included in M917A1 and
M917A1 w/MCS wiring harness.
INSTALL AND CONNECT OVERHEAD CAB WIRING HARNESS USING ILLUSTRATION AND
TABLE AS A GUIDE.
NOTE
Follow-on Maintenance:
Connect batteries (TM 9-2320-363-20).
TM page Change 1 4-37
TABLE 1 6-Pin Connector 1 2 3-Pin Connector 2 3 2-Pin Connector 5 * 4 1-Pin Connector 2 5 Cable Connector 2 6 Ring Terminal 4 * All except M917A1 and M917A1 w/MCS
TM page 4-38 Change 1
