Internal Filter Element Replacement

TM 9-2320-363-34-1 · Chapter 3 — Power Package Maintenance

This task covers: a. Removal b. Cleaning c. inspection d. Installation

Tools and Special Equipment:                           References:
Shop Equipment, SC 4910-95-CL-A31                      TM 9-2320-363-20
Tool Kit, SC 5180-90-CL-N05
                                                       Equipment Condition:
Materials/Parts:
                                                       Reference              Condition Description
Packing                  P/N 23013114
                                                       TM 9-2320-363-20       Transmission Oil
Oil, Lubricating         Appendix B, Item 37                                  Pan Removed

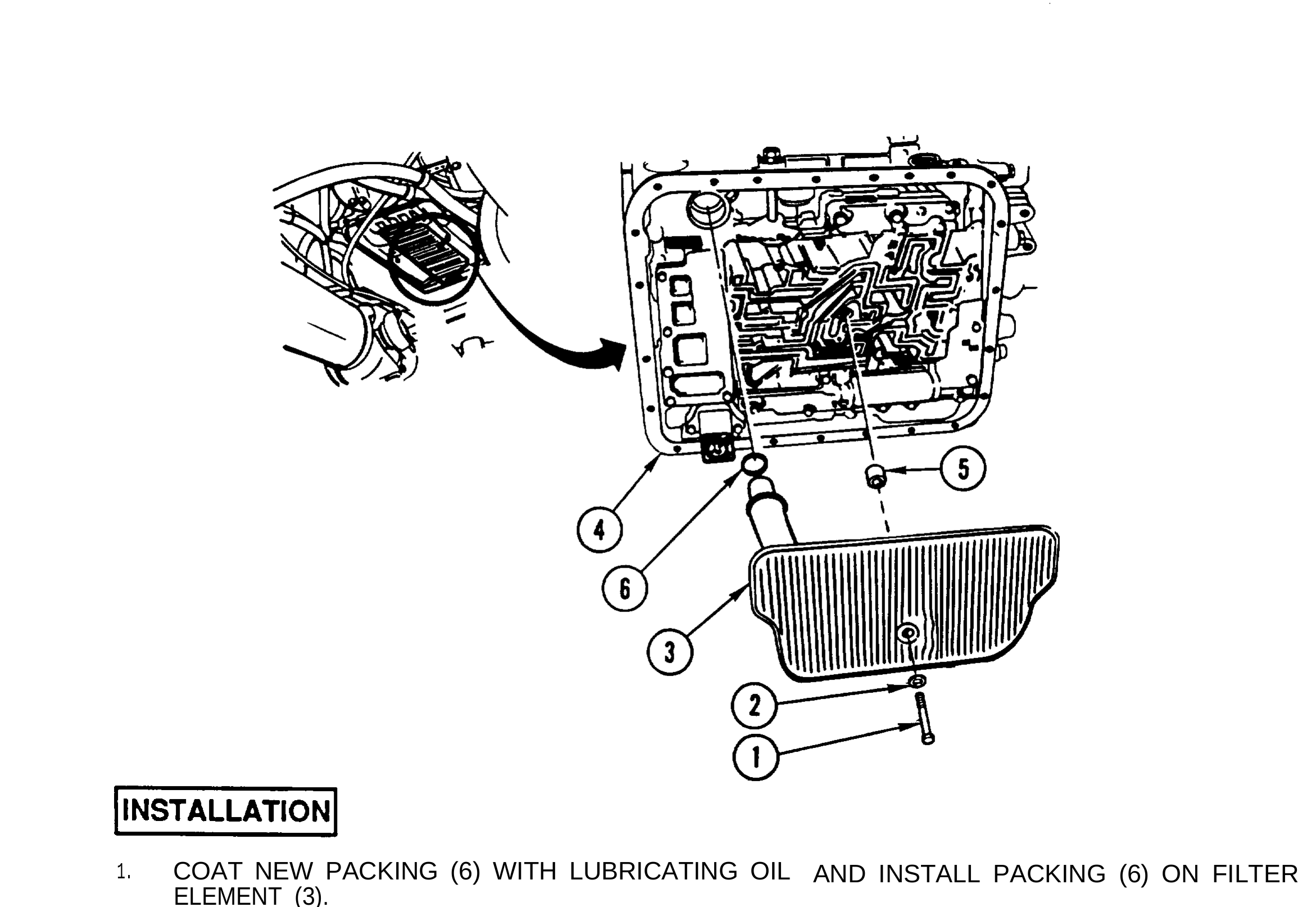

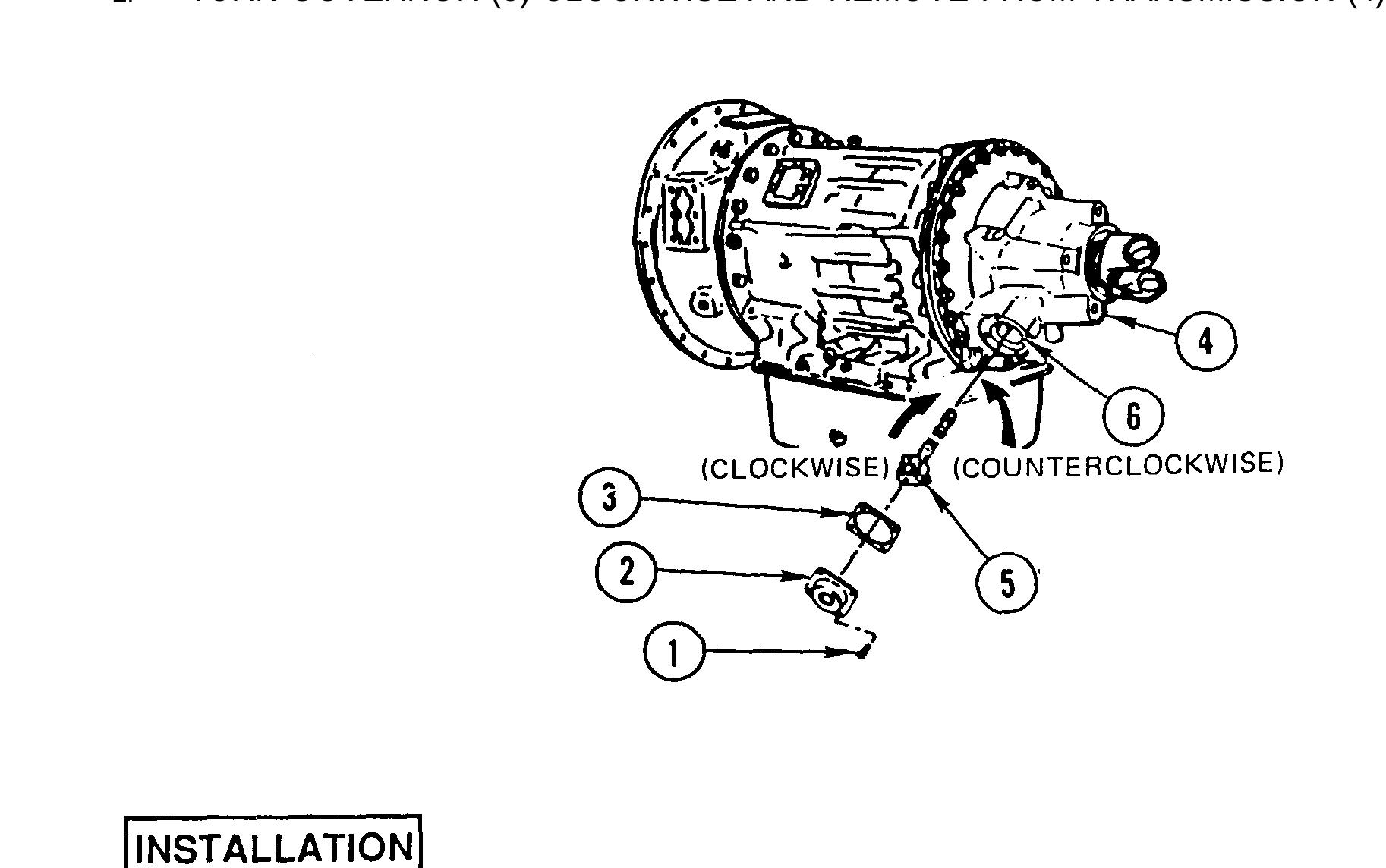

1.   REMOVE SCREW (1), WASHER (2), AND FILTER ELEMENT (3) FROM TRANSMISSION (4).
2.   REMOVE SPACER (5).
3.   REMOVE AND DISCARD PACKING (6) FROM FILTER ELEMENT (3).
4.   IF FILTER ELEMENT (3) IS DAMAGED OR CLOGGED, REPLACE WITH NEW ELEMENT.

      Use general cleaning methods to clean all parts (page 2-30).

      Inspect all parts for wear or damage.

1. COAT NEW PACKING (6) WITH LUBRICATING OIL AND INSTALL PACKING (6) ON FILTER ELEMENT (3).

2. INSTALL SCREW (1) AND WASHER (2) THRU FILTER ELEMENT (3) AND SPACER (5).

3. INSTALL FILTER ELEMENT (3) IN TRANSMISSION (4),

4. TIGHTEN SCREW (1) TO 10-15 LB-FT (14-20 N.m).

Install transmission oil pan (TM 9-2320-363-20).
