Governor Serviceandreplacement

TM 9-2320-363-34-1 · Chapter 3 — Power Package Maintenance

This task covers: a. Removal b. Installation

Tools and Special Equipment:                    Materials/Parts:
Shop Equipment, SC 4910-95-CL-A31               Gasket                P/N 23011670
Tool Kit, SC 5180-90-CL-N05

                                            NOTE
           Have suitable container available to catch fluid when cover is removed.

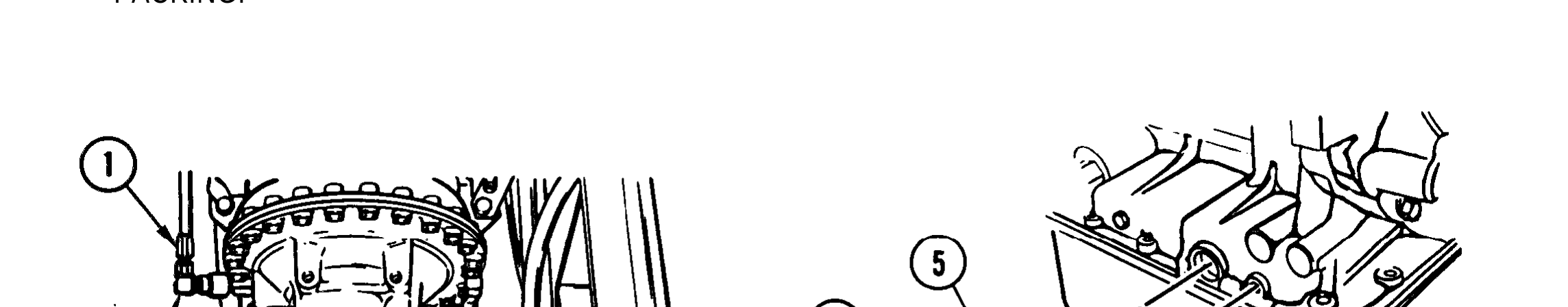

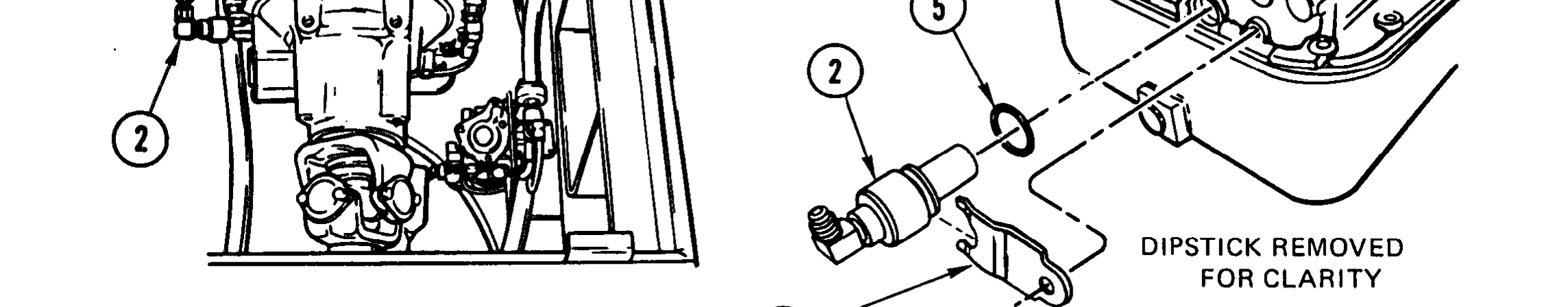

1.   REMOVE FOUR SCREWS (1), COVER (2), AND GASKET (3) FROM TRANSMISSION (4). DISCARD
     GASKET.
2.   TURN GOVERNOR (5) CLOCKWISE AND REMOVE FROM TRANSMISSION (4).

1.   TURN GOVERNOR (5) COUNTERCLOCKWISE IN PORT (6).
2.   ALINE HOLES IN NEW GASKET (3) AND COVER (2) WITH HOLES IN PORT (6).
3.   INSTALL FOUR SCREWS (1), COVER (2), AND NEW GASKET (3) IN TRANSMISSION (4). TIGHTEN
     SCREWS TO 10-15 LB-FT (14-20 N.m).
