Engine Wiring Harness Replacement

TM 9-2320-363-34-1 · Chapter 4 — Electrical System Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                           Equipment Condition:

Shop Equipment, SC 4910-95-CL-A31                      Reference              Condition Description
Tool Kit, SC 5180-90-CL-N05
                                                       TM 9-2320-363-20       Batteries Disconnected
References:
TM 9-2320-363-20

                                                  NOTE
      l     Wiring harness and leads are secured in place by wire ties, cushion clamps,
           and screw terminals.

      l     Only remove hardware securing harness or lead to be removed.

      DISCONNECT AND REMOVE ENGINE WIRING HARNESS USING ILLUSTRATION AND TABLE AS
      A GUIDE.

      Use general cleaning methods to clean all parts (page 2-30).

      Inspect all parts for wear or damage

                                                  NOTE
       l    Wiring harness and leads are secured in place by wire ties, cushion clamps,
           and screw terminals.

       l    Make sure harness is secure and all hardware is tight.

      INSTALL AND CONNECT ENGINE WIRING HARNESS USING ILLUSTRATION AND TABLE AS A
      GUIDE.

                                                  NOTE
                                   Follow-on Maintenance:
       Connect batteries (TM 9-2320-363-20).

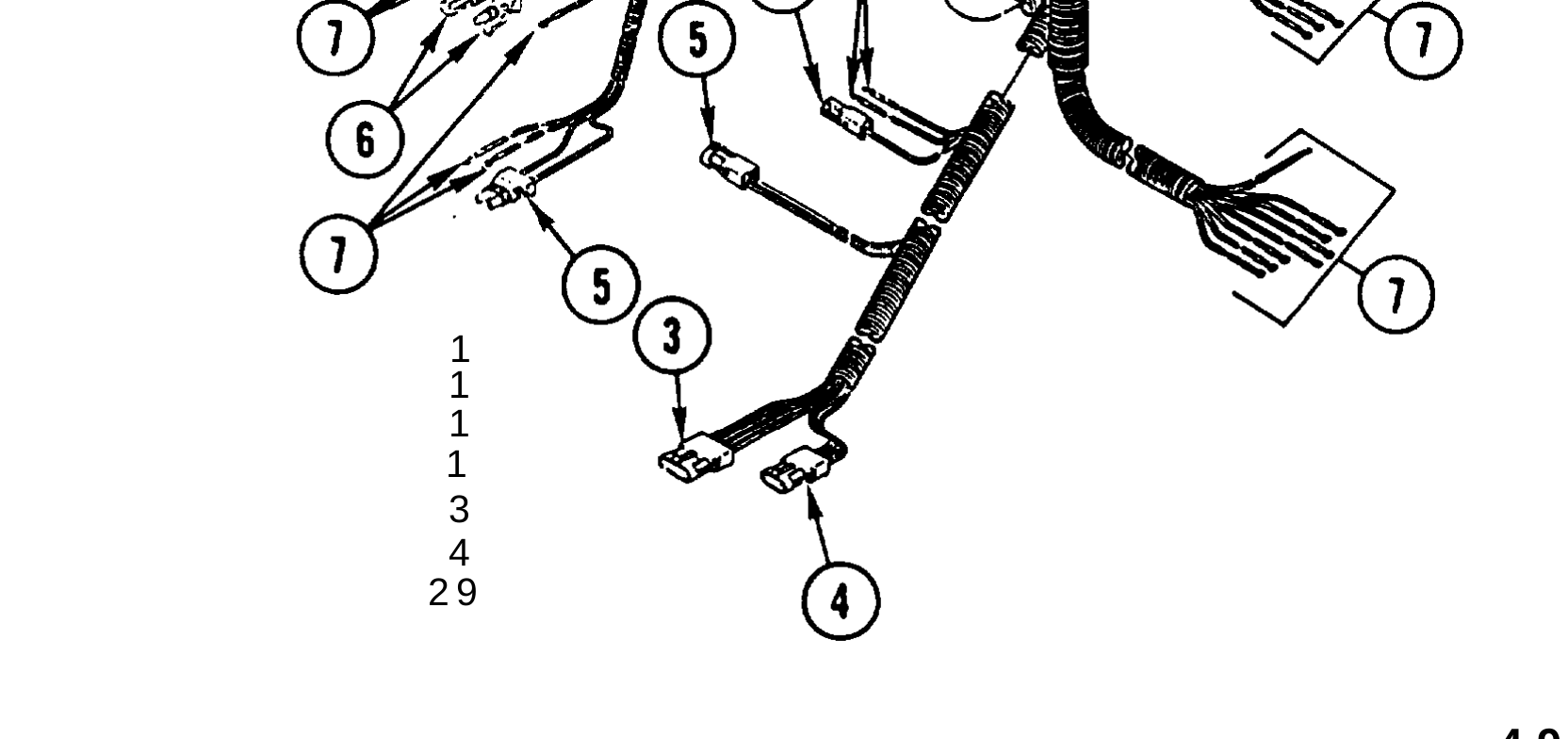

TABLE

 1   25-Pin Connector    1
 2   17-Pin Connector    1
 3   4-Pin Connector     1
 4   3-Pin Connector     1
 5   2-Pin Connector     3
 6   1-Pin Connector     4
 7   Ring Terminal      29

All data on pages 4-10 and 4-11 deleted

All data on pages 4-10 and 4-11 deleted.
