2-30. Intake Manifold Repair

TM 9-2815-237-34 · Chapter 2 — Engine Maintenance

This task covers:

a. Cleaning b. Inspection INITIAL SETUP:

      Tools                                                 Manual References
       General mechanic’s tool kit:                          TM 9-2815-237-34P
         automotive (Appendix E, Item 1)
                                                            Equipment Condition
      Materials/Parts                                        Engine disassembled into subassemblies
       Sealing compound (Appendix B, Item 18)                (para. 2-15).

a. Cleaning

 Clean intake manifold (1) or intake manifolds (4) and center manifold (3) in accordance with para. 2-9.

b. Inspection

                                                       NOT E
                        • For general inspection instructions, refer to para. 2-10.
                        • For turbocharged engines, perform step 1 only.
 1.        Inspect intake manifold (1) or intake manifolds (4) and center intake manifold (3) for damage.
           Replace if damaged.
 2.        Inspect nipple (2) for damage. If damaged, replace nipple (2) using sealing compound.

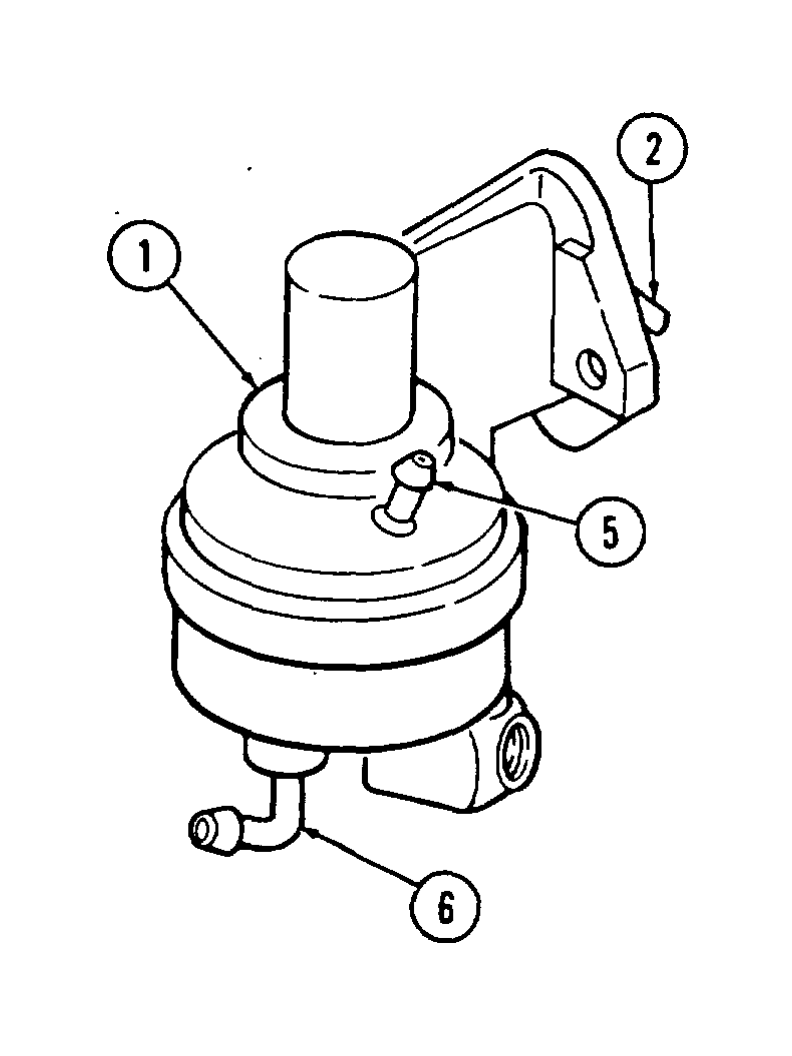

                                                                              TURBO ENGINE
