Rear Cab Mounts Replacement

TM 9-2320-363-34-1 · Chapter 10 — Body, Cab, Hood, and Hull Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                      Personnel Required: (2)
Tool Kit, SC 5180-90-CL-N05                       Equipment Condition:
Materials/Parts:                                  Reference                 Condition Description
Nut, Lock (8)                                      Page 10-40               Front Cab Mounts
                                                                            Removed

 1.   REMOVE TWO NUTS (1) AND TWO WASHERS (2).
 2.   LIFT CAB ASSEMBLY (3) APPROXIMATELY 5 IN. (127 mm).
 3.   REMOVE TWO BOLTS (4), TWO WASHERS (5), AND TWO BUSHINGS (6).

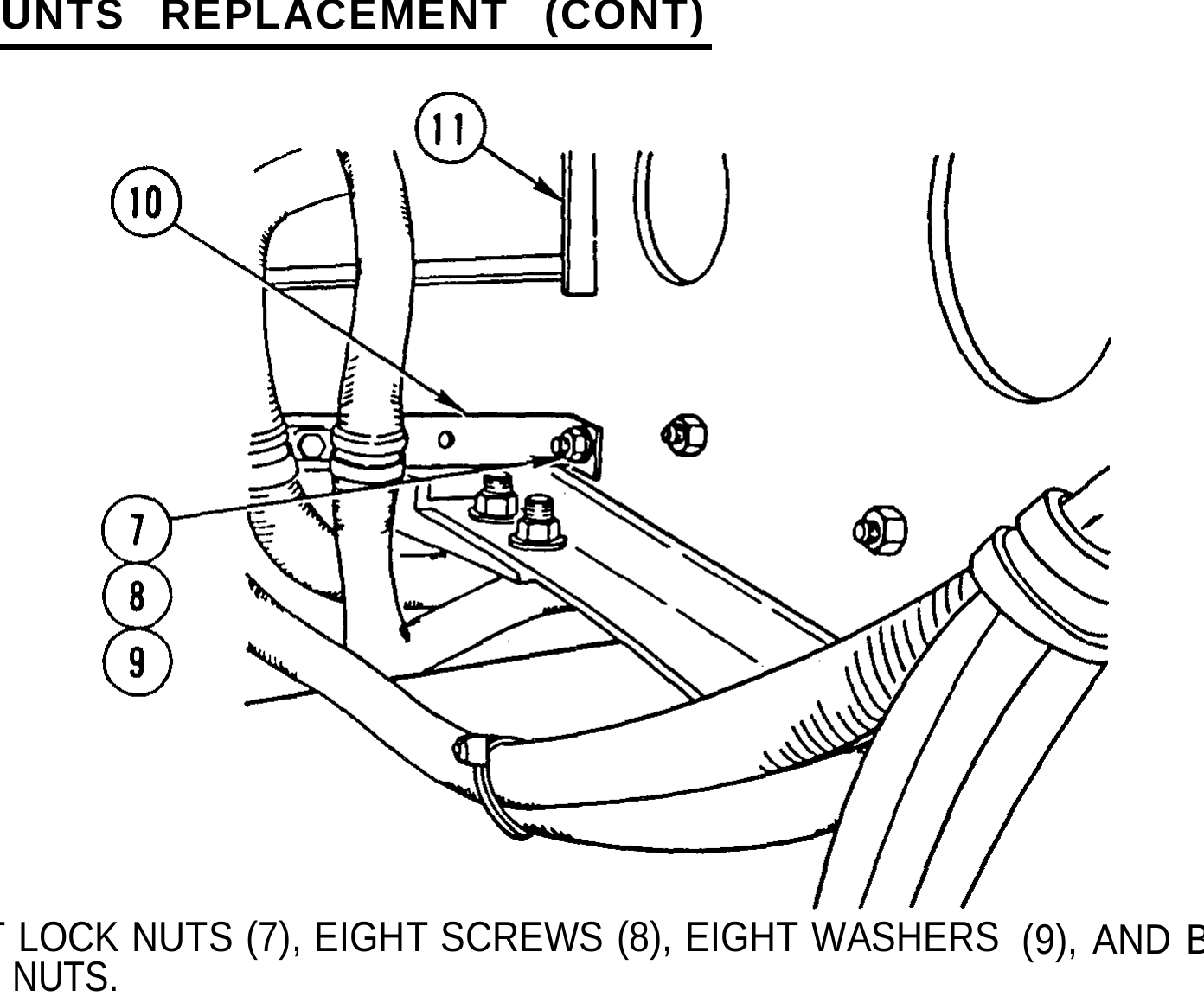

4. REMOVE EIGHT LOCK NUTS (7), EIGHT SCREWS (8), EIGHT WASHERS (9), AND BRACKET (10) DISCARD LOCK NUTS.

5. REMOVE BRACKET (11).

Use general cleaning methods to clean all parts (page 2-30).

Inspect all parts for wear or damage.

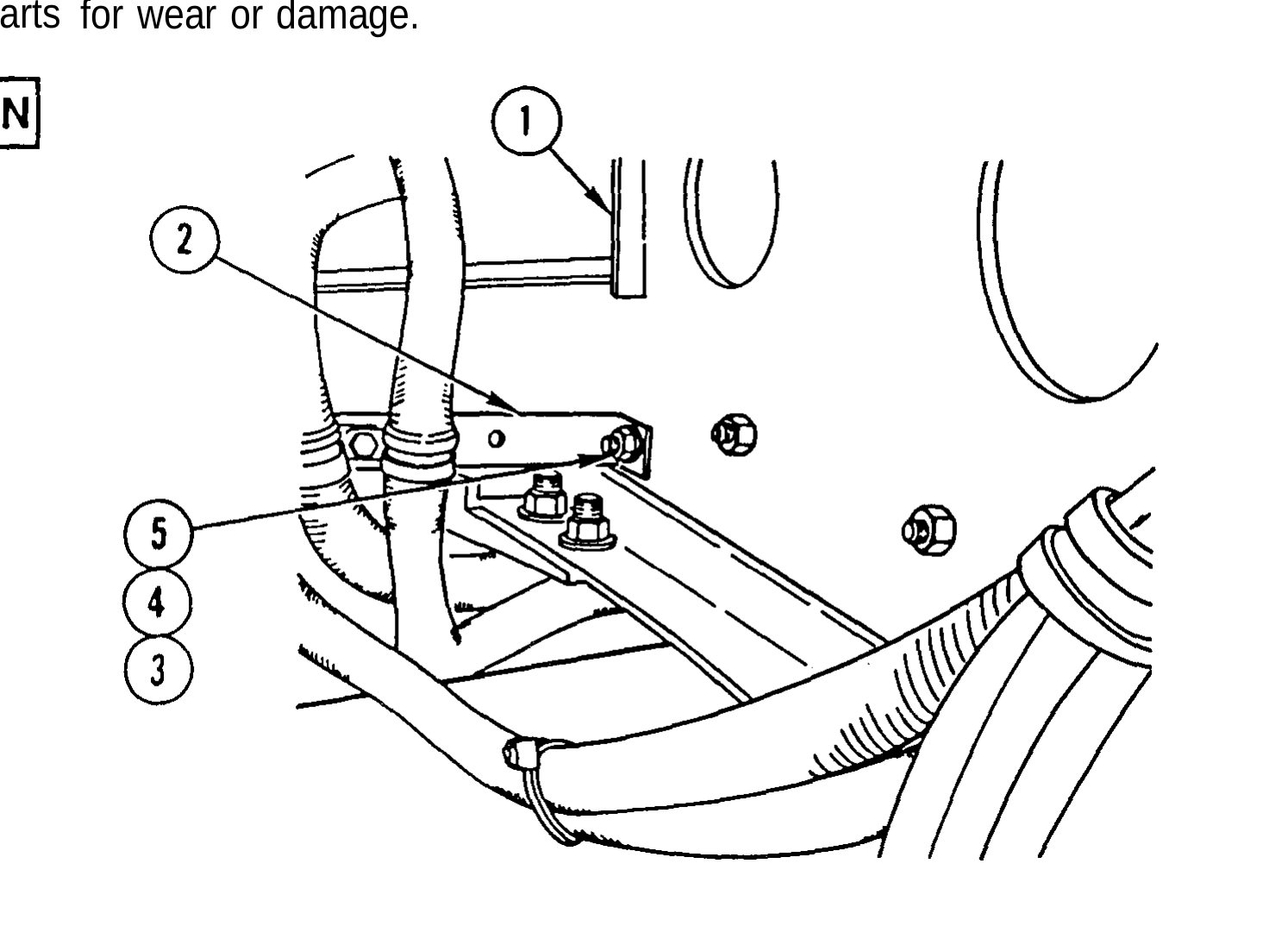

1. INSTALL BRACKET (1).

2. INSTALL BRACKET (2), EIGHT WASHERS (3), EIGHT SCREWS (4), AND EIGHT NEW LOCK NUTS (5).

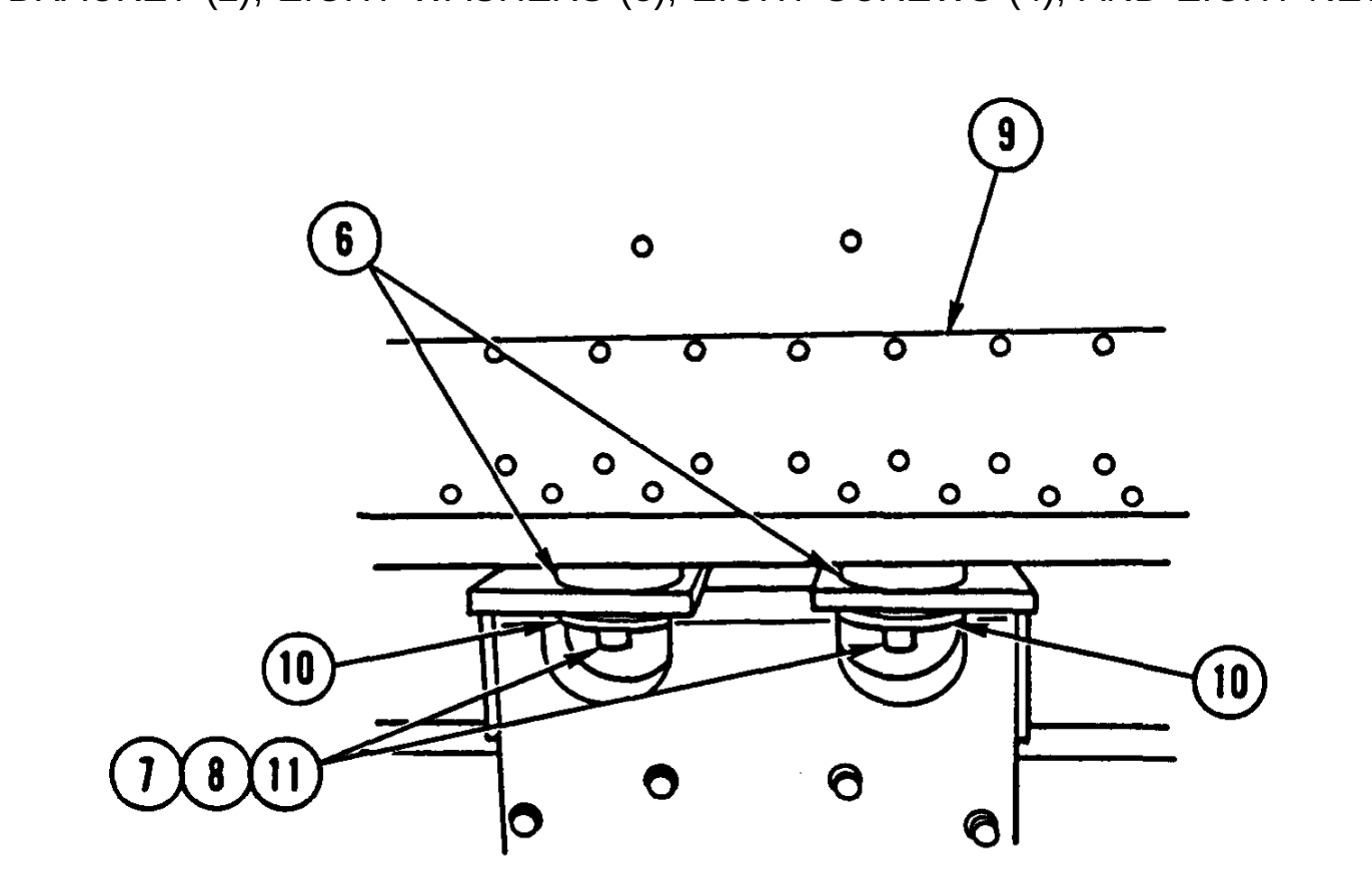

3. INSTALL TWO BUSHINGS (6), TWO WASHERS (7), AND TWO BOLTS (8).

4. LOWER CAB ASSEMBLY (9) AND MAINTAIN JUST ENOUGH SUPPORT TO KEEP SLACK OUT OF CHAIN.

5. INSTALL TWO WASHERS (10) AND TWO NUTS (11).

Install front cab mounts (page 10-40).
