Overslung Crossmember Replacement

TM 9-2320-363-34-1 · Chapter 8 — Frame and Towing Attachments Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:                      Equipment Condition:
Tool Kit, SC 5180-90-CL-N05                       Reference              Condition Description
References:                                       TM 9-2320-363-20       Fender Extensions
                                                                         Removed
TM 9-2320-363-20
                                                  TM 9-2320-363-20       Transmission Tunnel
                                                                         Access Cover Removed

                                             NOTE
                                  Step 1 is for left side only.

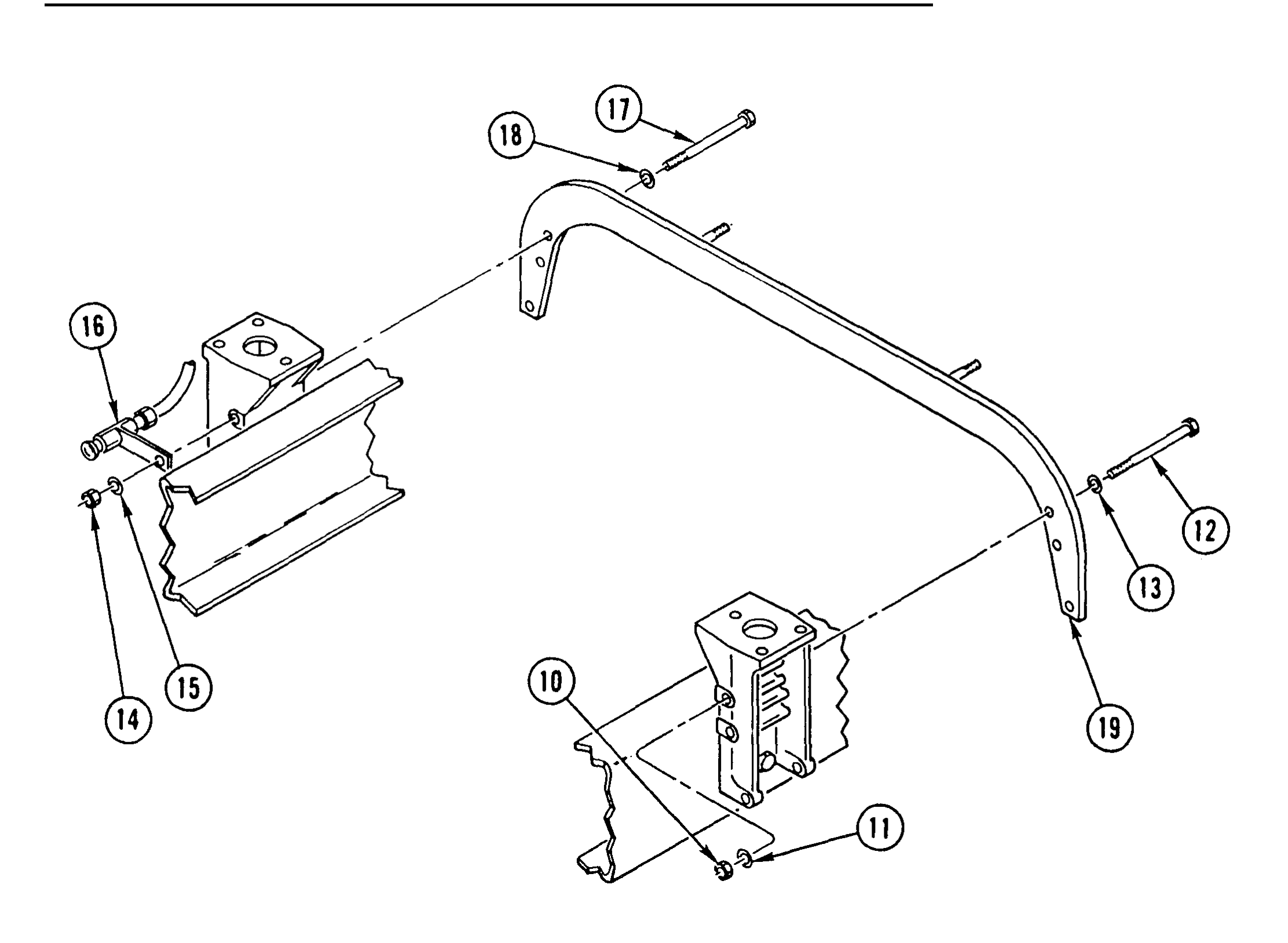

1.   REMOVE NUT (1), WASHER (2), CLAMP (3), NUT (4), WASHER (5), AND BRACKET (6).

                                              NOTE
                                  Step 2 is for right side only.

2.   REMOVE NUT (7), WASHER (8), AND TWO CLAMPS (9).

OVERSLUNG CROSSMEMBER REPLACEMENT (CONT)

3. REMOVE NUT (10), WASHER (11), CAPSCREW (l2), AND WASHER (13).

4. REMOVE NUT (14) AND WASHER (15) AND SET AOAP VALVE (16) ASIDE.

5. REMOVE CAPSCREW (17), WASHER (18), AND OVERSLUNG CROSSMEMBER (19).

Use general cleaning methods to clean all parts (page 2-30).

Inspect all parts for wear or damage.

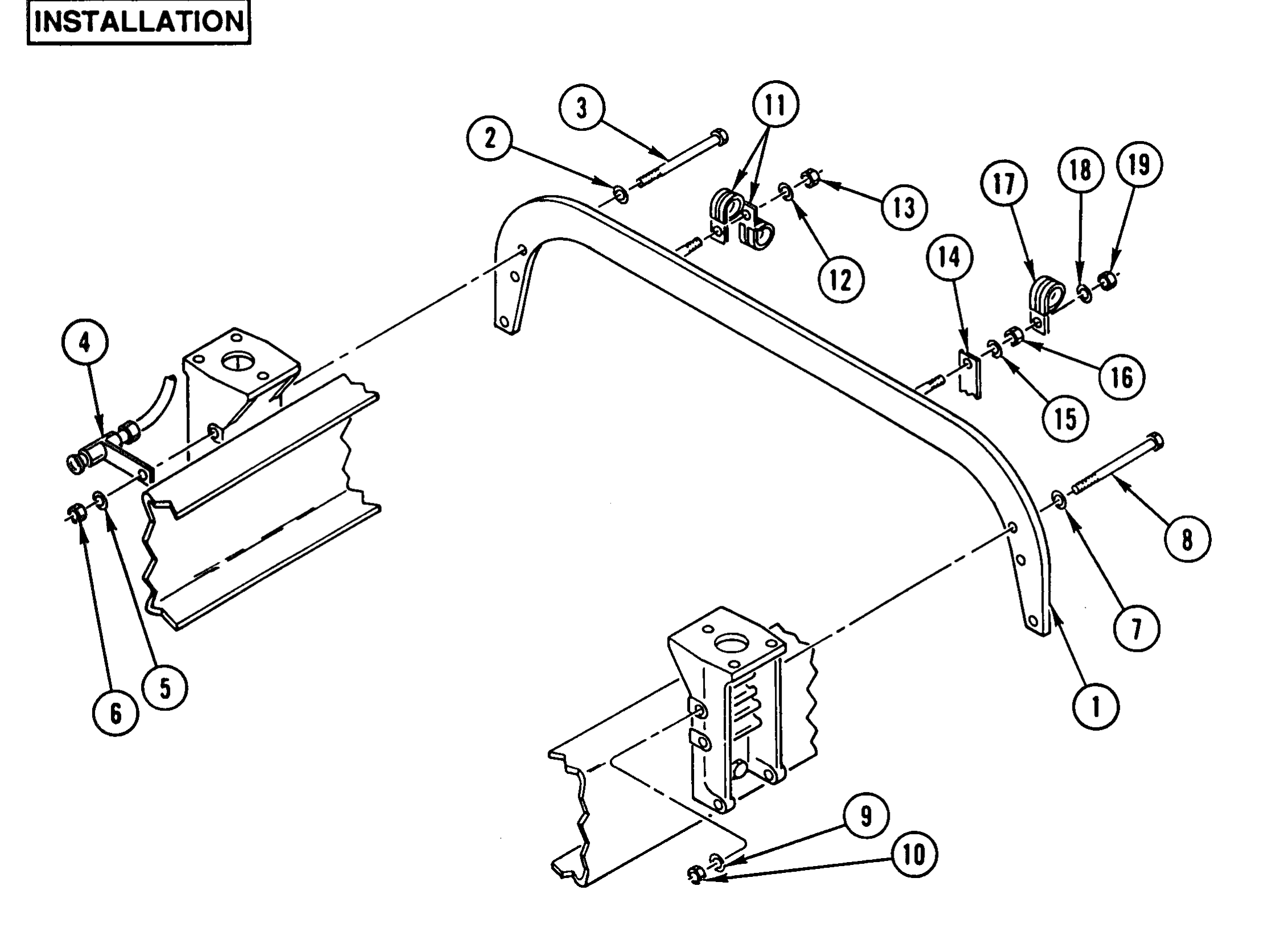

1. INSTALL OVERSLUNG CROSSMEMBER (1), WASHER (2), AND CAPSCREW (3).

2. INSTALL AOAP VALVE (4), WASHER (5), AND NUT (6).

3. INSTALL WASHER (7), CAPSCREW (8), WASHER (9), AND NUT (10).

4. INSTALL TWO CLAMPS (11), WASHER (12), AND NUT (13).

5. INSTALL BRACKET (14), WASHER (15), NUT (16), CLAMP (17), WASHER (18), AND NUT (19).

Install fender extensions (TM 9-2320-363-20). Install transmission tunnel access cover (TM 9-2320-363-20).
