Breather Tube Replacement

TM 9-2320-363-34-1 · Chapter 3 — Power Package Maintenance

This task covers: a. Removal b. Cleaning c. Inspection d. Installation

Tools and Special Equipment:
Tool Kit, SC 5180-90-CL-N05

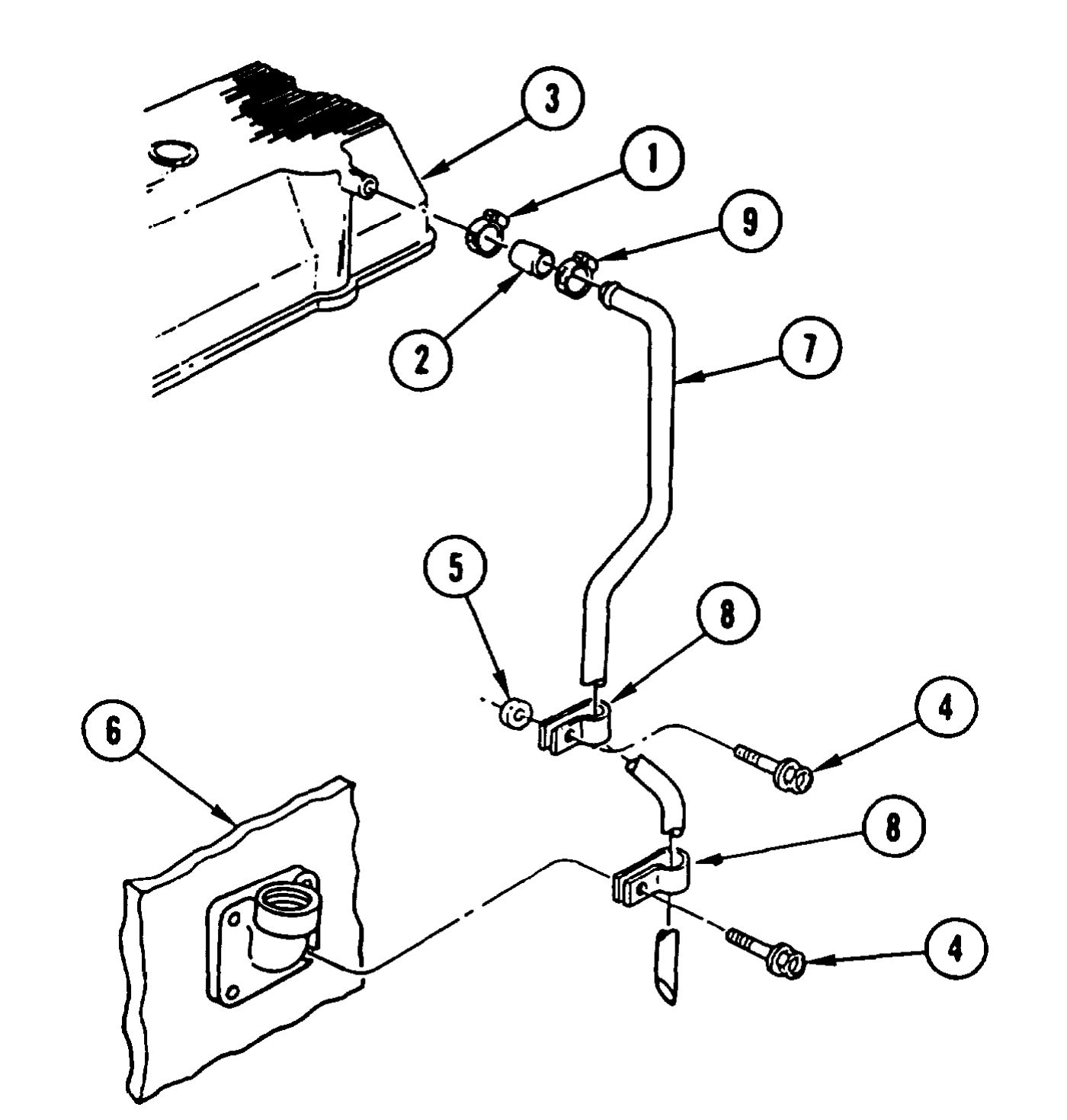

1.   LOOSEN HOSE CLAMP (1) AND DISCONNECT HOSE (2) FROM ROCKER COVER (3).
2.   REMOVE TWO BOLTS (4) AND SPACER (5) FROM ENGINE BLOCK (6).
3.   REMOVE BREATHER TUBE (7) AND TWO CLAMPS (8).
4.   LOOSEN HOSE CLAMP (9) AND REMOVE HOSE (2) FROM BREATHER TUBE (7).

       Use general cleaning methods to clean all parts (page 2-30).

       Inspect all parts for wear or damage.

1. INSTALL HOSE (2) ON BREATHER TUBE (7) AND TIGHTEN HOSE CLAMP (9).

2. INSTALL BREATHER TUBE (7) AND TWO CLAMPS (8).

3. INSTALL SPACER (5) AND TWO BOLTS (4) ON ENGINE BLOCK (6).

4. CONNECT HOSE (2) TO ROCKER COVER (3) AND TIGHTEN HOSE CLAMP (1).
