Appendix E — Tool Identification List
TM 9-2815-237-34 · Appendix E
TOOL IDENTIFICATION LIST
Section I. INTRODUCTION
E-1. SCOPE
This appendix lists common tools, special tools, and test equipment needed to maintain the 6.2L and 6.5L diesel engines.
E-2 EXPLANATION OF COLUMNS
a. Column (1) - Item Number. This number is assigned to each entry in the listing and is referenced in the “Initial Setup” of applicable tasks under the headings of “Test Equipment,” Tools,” and “Special Tools.”
b. Column (2) - Item Name. Name or identification of the tool or test equipment.
c. Column (3) - National Stock Number. The national stock number of the tool or test equipment.
d. Column (4) - Part Number. The manufacturer’s part number.
e. Column (5) - Reference. This column lists the references used to identify and illustrate the tools and test equipment needed for maintaining the 6.2L and 6.5L diesel engines.
E-1
PDF page 254
Section II. TOOL IDENTIFICATION LIST
(1) (2) (3) (4) (5)
National
Stock
Number Item Name Number Part Number Reference
1 Tool kit, general mechanic’s 5180-00-177-7033 SC 5180-90-CL-N26
automotive
2 Engine repair stand 4910-00-506-0037 1725A TM 9-2815-237-34P
3 Engine lifting sling 4910-01-193-7808 J33139 TM 9-2815-237-34P
4 Hydraulic valve lifter remover 5120-01-209-6870 J29834 TM 9-2815-234-34P
5 Injection nozzle socket 5120-01-171-5233 J29873 TM 9-2815-237-34P
6 Glow plug socket 5120-00-277-1463 FUS121 TM 9-2815-237-34P
7 Hex head driver, 6 mm 5120-01-055-1308 FAM6 TM 9-2815-237-34P
8 Hex head driver, 8 mm 5120-01-053-4159 FAM8 TM 9-2815-237-34P
9 Hex head driver, 5/16 in. 5120-00-683-8602 FA10B TM 9-2815-237-34P
10 Dial indicator 5210-00-277-8840 SC 4910-95-CL-A02
11 Cylinder ridge reamer 5110-00-237-8598 SC 4910-95-CL-A02
12 Camshaft bearing remover 5120-01-206-3818 J35178 TM 9-2815-237-34P
and installer
13 Feeler gauge 5210-01-045-3526 SC 4910-95-CL-A31
14 Cylinder bore gauge 5210-00-494-1774 SC 4910-95-A63
15 Straightedge 6675-00-224-8807 SC 4910-95-A63
16 Micrometer 5210-00-5547134 SC 4910-95-A63
17 Cylinder boring machine 4910-00-473-6361 SC 4910-95-A63
18 Cylinder honing unit 5130-00-991-0699 SC 491 0-95-A63
19 Puller 5120-00-595-9305 SC 4910-95-CL-A31
20 Piston ring expander 5120-00-857-3190 SC 4910-95-CL-A31
21 "V" blocks 3460-00-725-5076 SC 4910-95-CL-A02
22 Valve spring compressor 5120-00-239-8686 SC 4910-95-A63
23 Bench grinder 3415-00-517-7744 SC 4910-95-CL-A31
24 Rotary wheel wire brush 5130-00-473-6444 SC 4910-95-CL-A31
25 Electric drill 5130-00-889-8993 SC 4910-95-CL-A31
26 Rotary end wire brush 5130-00-293-2409 SC 4910-95-CL-A31
27 Valve spring tester 6635-00-641-7346 SC 4910-95-A63
28 Valve face grinding machine 4910-00-540-4679 SC 4910-95-A63
29 Valve seat grinding kit 4910-00-473-6437 SC 4910-95-A63
E-2
PDF page 255
Section II. TOOL IDENTIFICATION LIST (Cont’d)
(1) (2) (3) (4) (5)
National
Item Stock
Number Item Name Number Part Number Reference
30 Hammer, soft-head 5120-01-071-5356 SC 4910-95-A62
31 Injection nozzle tester 4910-00-255-8641 SC 4910-95-CL-A01
32 Multimeter 6625-01-139-2512 AN/PSM-45 SC 4910-95-CL-A74
33 Rear main seal installer (6.2L) 5120-01-210-8792 J33153 TM 9-2815-237-34P
34 Rear main seal installer (6.5L) 5120-01-422-0334 J39084 TM 9-2815-237-34P
35 Piston ring compressor 5120-00-250-6055 SC 4910-95-CL-A02
36 Crowfoot, 16 mm 5120-01-242-8165 J35159 TM 9-2815-237-34P
37 Crowfoot, 19 mm 5120-01-230-9421 J35160 TM 9-2815-237-34P
38 Fuel injection nozzle, remover 5120-01-171-5233 J29873 TM 9-2815-237-34P
39 Drive shaft bearing, installer 5120-01-208-7771 23805 TM 9-2815-237-34P
40 Drive shaft seal, installer 5120-01-208-7752 22727 TM 9-2815-237-34P
41 Throttle and shutoff shaft 5120-01-189-0448 18411 TM 9-2815-237-34P
bushing kit
42 Torx drive, T27, socket 5120-01-078-1899 22939 TM 9-2815-237-34P
43 Governor weight support 5120-01-197-0236 16313 TM 9-2815-237-34P
44 End cap wrench 5120-01-207-5563 20548 TM 9-2815-237-34P
45 Roller-to-roller setting tool 5120-01-200-4526 19969 TM 9-2815-237-34P
46 Holding fixture 5120-01-208-7753 23615 TM 9-2815-237-34P
47 Pilot tube mandrel 5120-01-208-1767 16314 TM 9-2815-237-34P
48 Delivery valve, extractor 5120-00-816-7059 26081 TM 9-2815-237-34P
test set, calibration
49 Linkage gap tool 5120-01-249-0370 23080 TM 9-2815-237-34P
50 Automatic advance indicator 5120-01-249-0368 23745 TM 9-2815-237-34P
51 Vacuum valve block gauge 5120-01-249-0369 23716 TM 9-2815-237-34P
52 Protractor 6675-01-247-2286 22089 TM 9-2815-237-34P
53 Air timing gauge 5220-01-247-0361 23715 TM 9-2815-237-34P
54 Hex-head driver, 5/32 in. 5120-00-969-0071 J35170 TM 9-2815-237-34P
55 Hex-head driver, 1/8 in. 5120-01-016-9202 J35171 TM 9-2815-237-34P
56 Hex-head driver, 1/4 in. 5120-00-596-8508 FA8A TM 9-2815-237-34P
57 Adapter plate 67-6878 Kit 74-8033
58 Advance indicator 74-1094 Kit 74-8033
Change 1 E-3
PDF page 256
Section II. TOOL IDENTIFICATION LIST (Cont’d)
(1) (2) (3) (4) (5)
National
Item Stock
Number Item Name Number Part Number Reference
59 Alignment gauge 4910-01-397-1616 67-4787 Kit 74-8033
60 Barring tool 4910-01-211-0879 67-2840 Kit 74-8033
61 Connector 67-5687 Kit 74-8033
62 High-pressure line 74-1250 Kit 74-8033
63 Hose assembly 74-1337 Kit 74-8033
64 Hose assembly 74-1030 Kit 74-8033
65 Male pipe fitting 03-5253 Kit 74-8033
66 Quick-connect plug 67-3456 Kit 74-8033
67 Test adapter 74-1131 Kit 74-8033
68 Test lead, black Kit 74-8033
69 Test lead, red 77-0432 Kit 74-8033
70 Throttle arm 67-5649 Kit 74-8033
positioner assembly
71 Tubing 4720-01-206-4429 03-6063 Kit 74-8033
E-4 Change 1

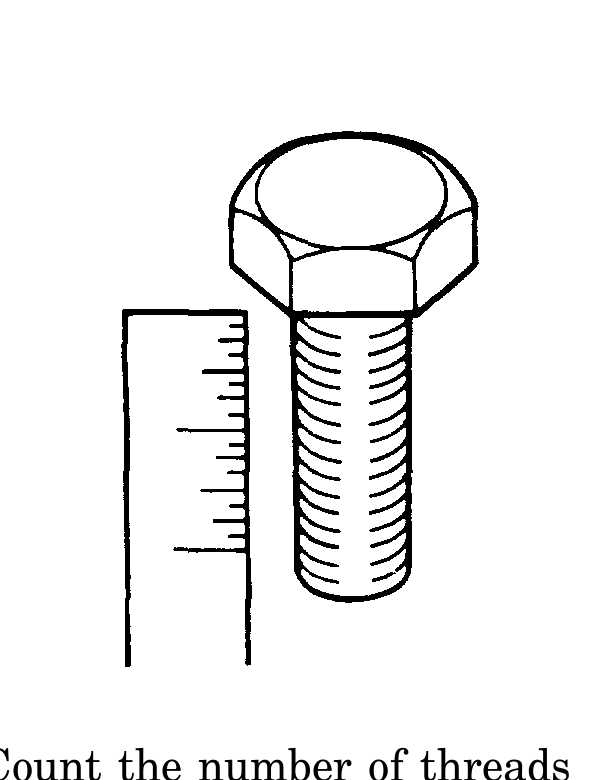

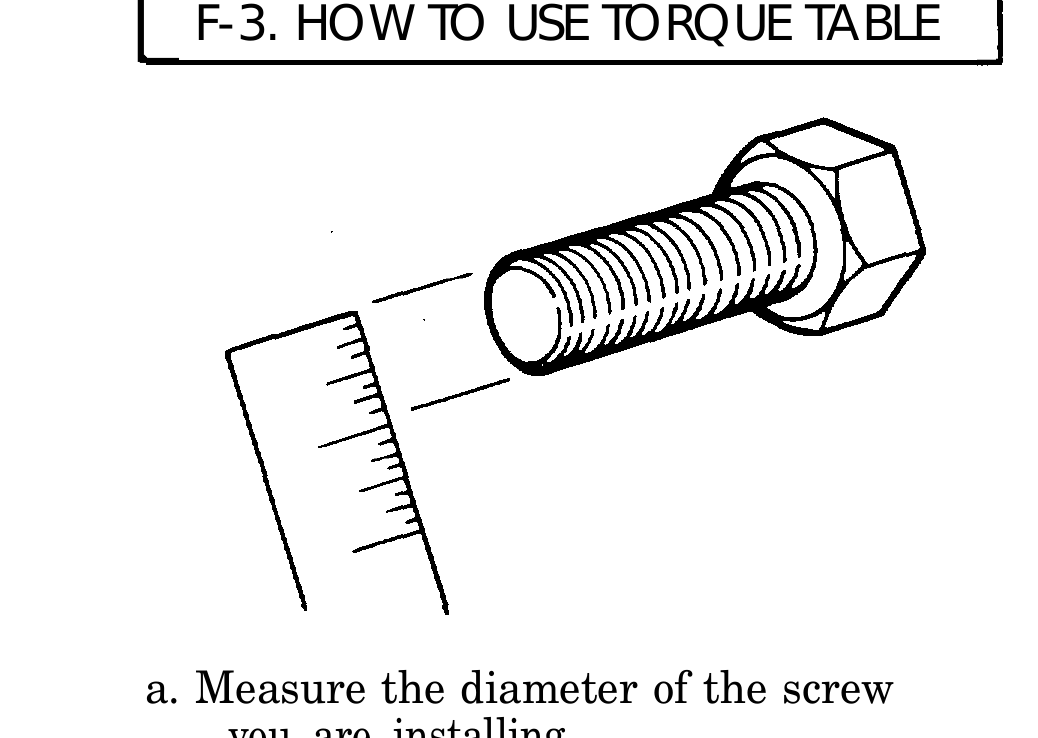

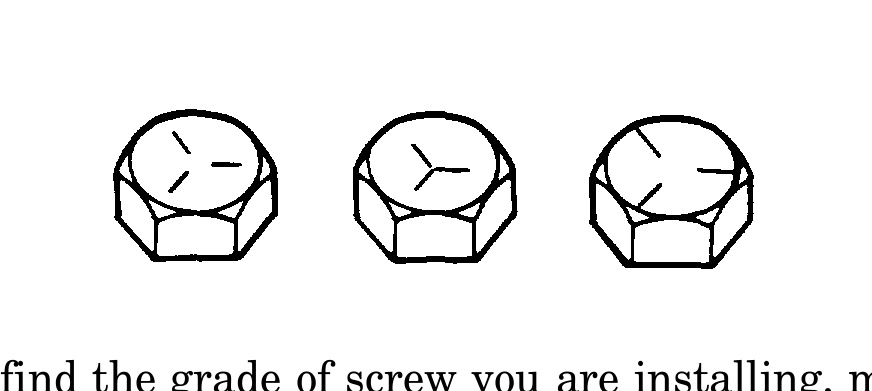

PDF page 257
